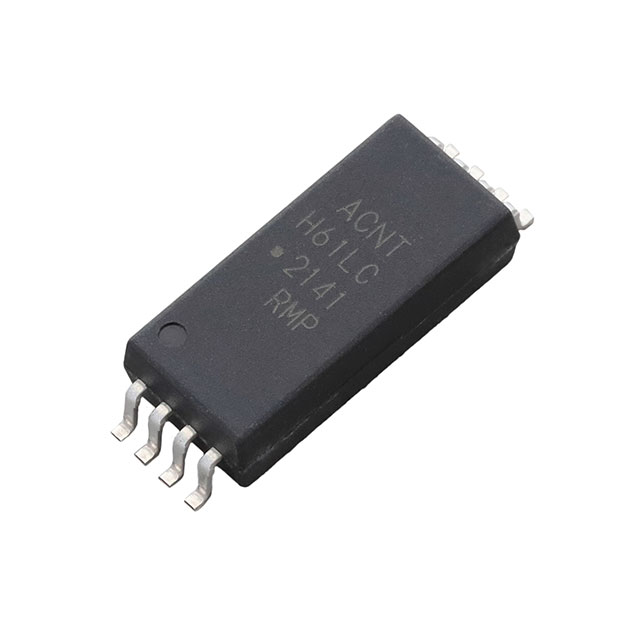

ACNT-H61LC-000E

Manufacturer :

Broadcom

Product Category :

Optoisolators - Logic Output

Logic Gate Type :

Buffer

Voltage - Supply :

5.5V

Package Type :

SO

Direction Type :

Uni-Directional

Common Mode Transient Immunity (Min) :

20kV/μs

Inputs - Side 1/Side 2 :

1/0

Product Type :

High Speed Optocouplers

Current Transfer Ratio :

-

Subcategory :

Optocouplers

Series :

-

Output Type :

Push-Pull, Totem Pole

Minimum Operating Temperature :

- 40 C

Operating Temperature :

-40°C ~ 105°C

Isolation Voltage :

7500 Vrms

Base Product Number :

ACNT-H61

Package / Case :

8-SOIC (0.535", 13.60mm Width)

Propagation Delay tpLH / tpHL (Max) :

100ns, 100ns

Voltage - Forward (Vf) (Typ) :

1.38V

Manufacturer :

Broadcom Limited

Number of Pins :

8

Mounting Type :

Surface Mount

Brand :

Broadcom / Avago

Input Type :

DC

Maximum Operating Temperature :

+ 105 C

Data Rate :

10MBd

RoHS :

Details

Product Status :

Active

Rise / Fall Time (Typ) :

10ns, 10ns

Vf - Forward Voltage :

1.38 V

Reverse Voltage :

5 V

Supplier Device Package :

8-SO Stretched

Output Current :

10 mA

Product Category :

High Speed Optocouplers

Current - DC Forward (If) (Max) :

10mA

Package :

Tube

Voltage - Isolation :

7500Vrms

Number of Channels per Chip :

1

Mounting Style :

Through Hole

Current - Output / Channel :

10 mA

Number of Channels :

1

Maximum Forward Current :

10 mA

Rise Time :

10 ns

Peak Forward Voltage :

1.85 V

Packaging :

Tube

Output Device :

CMOS
