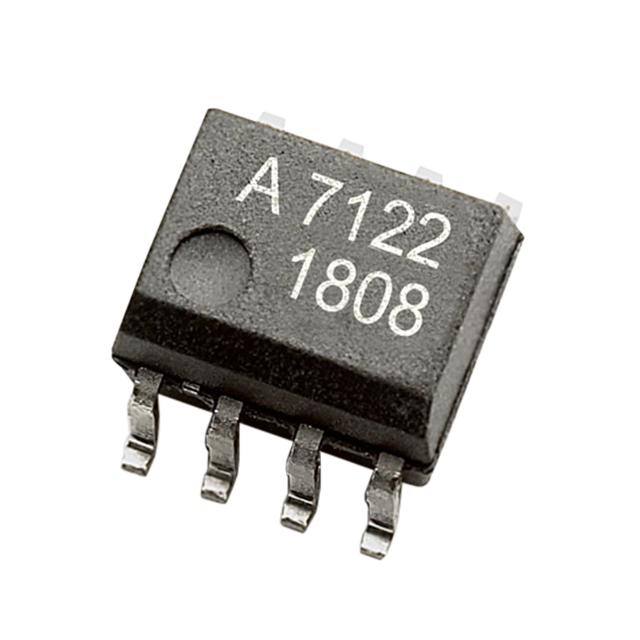

ACHS-7122-000E

Manufacturer :

Broadcom

Product Category :

Current Sensors

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

For Measuring :

AC/DC

Polarization :

Bidirectional

Factory Lead Time :

17 Weeks

Current - Sensing :

20A

JESD-609 Code :

e3

Current - Supply (Max) :

15mA

Operating Temperature :

-40°C~110°C

Voltage - Supply :

4.5V~5.5V

Sensor Type :

Hall Effect

Package / Case :

8-SOIC (0.154, 3.90mm Width)

Sensitivity :

100mV/A

Linearity :

±0.18%

Response Time :

4μs

Output :

Ratiometric, Voltage

Packaging :

Tube

Terminal Finish :

Tin (Sn)

Mounting Type :

Surface Mount

Frequency :

80kHz

Analog IC - Other Type :

ANALOG CIRCUIT

RoHS Status :

ROHS3 Compliant
