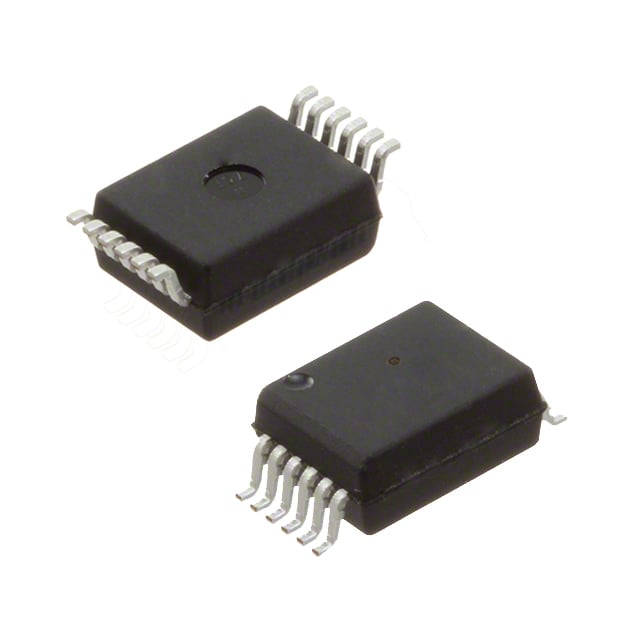

ACFL-6212U-060E

Manufacturer :

Broadcom

Product Category :

Optoisolators - Logic Output

Mounting Type :

Surface Mount

Factory Lead Time :

17 Weeks

Inputs - Side 1/Side 2 :

1/0

JESD-609 Code :

e3

Rise / Fall Time (Typ) :

10ns 10ns

Current - Output / Channel :

10mA

Output Type :

Push-Pull, Totem Pole

Common Mode Transient Immunity (Min) :

25kV/μs

HTS Code :

8541.40.80.00

Operating Temperature :

-40°C~125°C

Current - DC Forward (If) (Max) :

20mA

Input Type :

DC

Packaging :

Tube

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Optoelectronic Device Type :

LOGIC IC OUTPUT OPTOCOUPLER

Terminal Finish :

Tin (Sn)

Voltage - Forward (Vf) (Typ) :

1.5V

Package / Case :

12-BSOP (0.295, 7.50mm Width)

Number of Channels :

2

Voltage - Isolation :

5000Vrms

Propagation Delay tpLH / tpHL (Max) :

100ns, 100ns

Series :

R²Coupler™

Voltage - Supply :

3V~5.5V

RoHS Status :

ROHS3 Compliant
