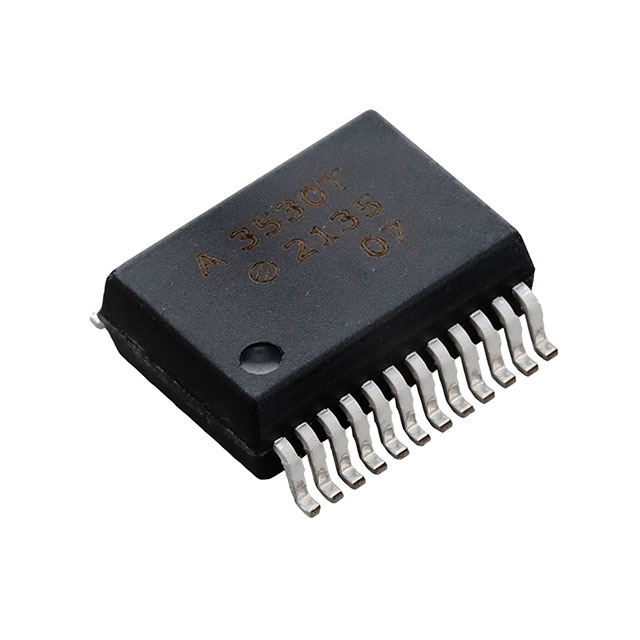

ACFJ-3530T-000E

Manufacturer :

Broadcom

Product Category :

Isolators - Gate Drivers

Current - Peak Output :

2.5A

Pin Count :

24

Propagation Delay tpLH / tpHL (Max) :

200ns, 200ns

RoHS :

Details

Maximum Operating Temperature :

+ 125 C

Minimum Isolation Voltage :

5000 Vrms

Package / Case :

24-SOIC (0.295", 7.50mm Width)

Current - Output High, Low :

1.5A, 1.5A

Product Type :

Logic Output Optocouplers

Voltage - Forward (Vf) (Typ) :

1.55V

Mounting Type :

Surface Mount

Mounting Style :

SMD/SMT

Rise / Fall Time (Typ) :

15ns, 15ns

Operating Supply Voltage :

1.71, 5.5 V

Package :

Tube

Voltage - Output Supply :

15.2V ~ 16.8V

Pulse Width Distortion (Max) :

100ns

Forward Voltage :

1.55 V

Manufacturer :

Broadcom Limited

Output Device :

Buffer

Supplier Device Package :

24-SOIC

Number of Channels :

1

Product Category :

Logic Output Optocouplers

Common Mode Transient Immunity (Min) :

50kV/µs

Minimum Operating Temperature :

- 40 C

Isolation Voltage :

5000 Vrms

Product Status :

Active

Packaging :

Tube

Number of Channels per Chip :

1

Supplier Package :

SOIC

Operating Temperature :

-40°C ~ 125°C

Voltage - Isolation :

5000Vrms

Brand :

Broadcom / Avago

Approval Agency :

CSA, UL, VDE

Base Product Number :

ACFJ-3530T

Rise Time :

15 ns

Vf - Forward Voltage :

1.55 V

Subcategory :

Optocouplers

Series :

Automotive, AEC-Q100
