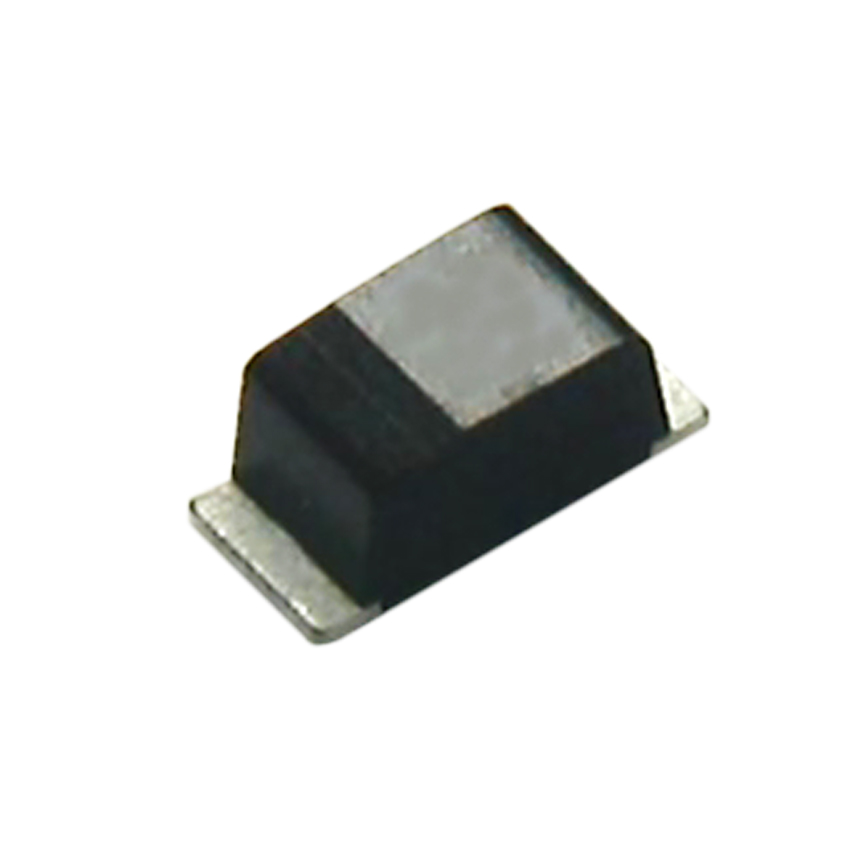

ACDBMT140-HF

Manufacturer :

Comchip Technology

Product Category :

Diodes - Rectifiers - Single

JESD-609 Code :

e3

Number of Elements :

1

Factory Lead Time :

12 Weeks

Additional Feature :

LOW POWER LOSS

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Published :

2014

Operating Temperature (Max) :

125°C

Configuration :

Single

Package / Case :

SOD-123H

Peak Reflow Temperature (Cel) :

260

Number of Terminations :

2

Terminal Finish :

Tin (Sn)

Max Reverse Voltage (DC) :

40V

Terminal Form :

Flat

Pbfree Code :

yes

Series :

Automotive, AEC-Q101

Diode Element Material :

SILICON

Mounting Type :

Surface Mount

Operating Temperature - Junction :

-55°C~125°C

Voltage - DC Reverse (Vr) (Max) :

40V

Average Rectified Current :

1A

RoHS Status :

ROHS3 Compliant

JESD-30 Code :

R-PDSO-F2

Speed :

Fast Recovery =< 500ns, > 200mA (Io)

Mount :

Surface Mount

Current - Reverse Leakage @ Vr :

500μA @ 40V

Packaging :

Tape and Reel (TR)

Terminal Position :

Dual

Time@Peak Reflow Temperature-Max (s) :

30

Voltage - Forward (Vf) (Max) @ If :

500mV @ 1A

Diode Type :

Schottky

Capacitance @ Vr, F :

120pF @ 4V 1MHz

Output Current-Max :

1A
