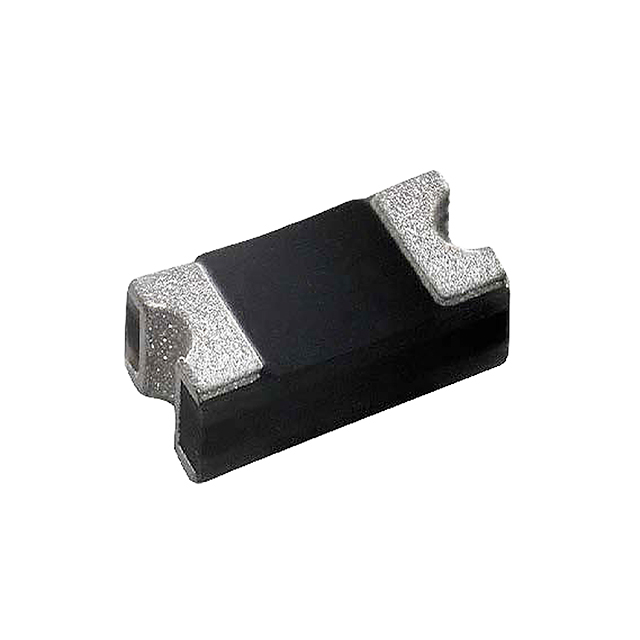

ACDBAT360-HF

Manufacturer :

Comchip Technology

Product Category :

Diodes - Rectifiers - Single

Diode Element Material :

SILICON

Average Rectified Current :

3A

Number of Terminations :

2

Voltage - Forward (Vf) (Max) @ If :

700mV @ 3A

Diode Type :

Schottky

Mount :

Surface Mount

Factory Lead Time :

12 Weeks

Configuration :

Single

Packaging :

Tape and Reel (TR)

JESD-30 Code :

R-PDSO-N2

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Voltage - DC Reverse (Vr) (Max) :

60V

Additional Feature :

LOW POWER LOSS

Non-rep Pk Forward Current-Max :

80A

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Reverse Current-Max :

200μA

Max Reverse Voltage (DC) :

60V

Terminal Position :

Dual

Operating Temperature - Junction :

-55°C~150°C

RoHS Status :

ROHS3 Compliant

Published :

2013

Output Current-Max :

3A

Number of Elements :

1

Terminal Form :

NO LEAD

Package / Case :

2010 (5025 Metric)

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Current - Reverse Leakage @ Vr :

500μA @ 60V

Mounting Type :

Surface Mount

Speed :

Fast Recovery =< 500ns, > 200mA (Io)

Application :

EFFICIENCY

Series :

Automotive, AEC-Q101

Operating Temperature (Max) :

150°C

Capacitance @ Vr, F :

180pF @ 4V 1MHz

Number of Phases :

1

Pbfree Code :

yes
