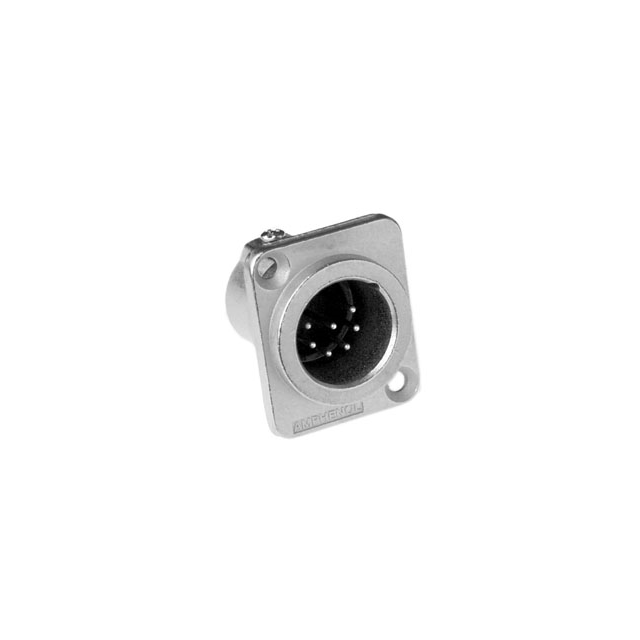

AC7MDZ
Or copy the link below:
- Mfr.Part #
- AC7MDZ
- Manufacturer
- Amphenol Audio
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT MALE XLR 7P SOLDER CUP
- Stock
- 189
- In Stock ：
- 189
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol Audio
- Product Category :
- Circular Connector Assemblies
- Color :
- Silver
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mounting Feature :
- Flange
- Mounting Type :
- Panel Mount
- Orientation :
- Keyed
- Connector Type :
- Receptacle, Male Pins
- Flammability Rating :
- UL94 V-0
- Shell Finish :
- Nickel
- Contact Finish - Mating :
- Gold
- Shell Size - Insert :
- XLR
- Number of Pins :
- 7
- Contact Plating :
- Gold, Silver
- Mount :
- Panel
- Shell Material :
- Zinc Die Cast
- Applications :
- Audio
- Contact Material :
- Brass
- Housing Material :
- Zinc
- Min Operating Temperature :
- -25°C
- Ingress Protection :
- IP40
- Current Rating :
- 5A
- Series :
- AC Z
- Material Flammability Rating :
- UL94 V-0
- Fastening Type :
- Push-Pull
- Published :
- 2006
- Operating Temperature :
- -25°C~75°C
- Current Rating (Amps) :
- 5A
- Max Operating Temperature :
- 75°C
- Number of Positions :
- 7
- Number of Contacts :
- 3
- Plating :
- Nickel
- Factory Lead Time :
- 12 Weeks
- Voltage - Rated :
- 133V
- Gender :
- Male
- RoHS Status :
- ROHS3 Compliant
- Length :
- 26mm
- Termination :
- Solder Cup
- Shielding :
- Shielded
- Feature :
- Ground
- Datasheets
- AC7MDZ
AC7MDZ Documents
Receptacle, Male Pins Zinc Die Cast Panel Mount 7 Positions Solder Cup Gold Nickel Keyed Push-Pull
AC7MDZ Overview
The product is packaged in Receptacle, Male Pins.This device is mounted in the Panel Mount position.There is a product in the AC Z Series.A total of 7 pins are available on the device.When the temperature is below 75°C, it is best to use it.A minimum operating temperature of -25°C is required for this device.There are a number of advantages to its Ground feature.Part Panel is mounted to the part.As a result, the device runs at -25°C~75°C Operating Temperature.
AC7MDZ Features
AC Z series
AC7MDZ Applications
There are a lot of Amphenol Sine Systems Corp
AC7MDZ Circular Connectors applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
