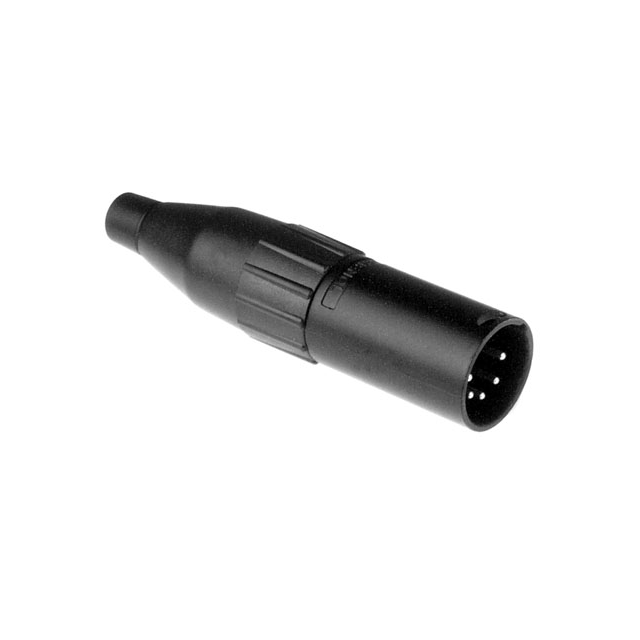

AC5MB
Or copy the link below:
- Mfr.Part #
- AC5MB
- Manufacturer
- Amphenol Audio
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT MALE XLR 5P SOLDER CUP
- Stock
- 223
- In Stock ：
- 223
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol Audio
- Product Category :
- Circular Connector Assemblies
- Published :
- 2012
- Min Operating Temperature :
- -25°C
- Shielding :
- Unshielded
- Insulation Resistance :
- 1GOhm
- Voltage - Rated AC :
- 50V
- Operating Temperature :
- -25°C~75°C
- Current Rating :
- 7.5A
- Backshell Material, Plating :
- Polyphenylene Ether (PPE)
- Material Flammability Rating :
- UL94 V-0
- Current Rating (Amps) :
- 7.5A
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Length :
- 82mm
- Diameter :
- 19mm
- Contact Finish - Mating :
- Silver
- Connector Type :
- Receptacle, Male Pins
- Fastening Type :
- Latch Holder
- Shell Material :
- Zinc Die Cast
- RoHS Status :
- ROHS3 Compliant
- Termination :
- Solder Cup
- Number of Contacts :
- 3
- Feature :
- Backshell, Cable Clamp
- Ingress Protection :
- IP40
- Contact Resistance :
- 3mOhm
- Orientation :
- Keyed
- Series :
- AC
- Cable Opening :
- 0.118 ~ 0.256 (3.00mm ~ 6.50mm)
- Contact Plating :
- Silver
- Mount :
- CABLE
- Factory Lead Time :
- 12 Weeks
- Gender :
- Male
- Flammability Rating :
- UL94 V-0
- Shell Finish :
- Black
- Contact Material :
- Phosphor Bronze
- Mounting Type :
- Free Hanging (In-Line)
- Max Operating Temperature :
- 75°C
- Applications :
- Audio
- Number of Positions :
- 5
- Color :
- Black
- Voltage - Rated :
- 133V
- Shell Size - Insert :
- XLR
- Datasheets
- AC5MB
Receptacle, Male Pins Zinc Die Cast Free Hanging (In-Line) 5 Positions Solder Cup Silver Black Keyed Latch Holder
AC5MB Overview
Currently, it is packaged in Receptacle, Male Pins.The mounting type of the device is Free Hanging (In-Line).A product of the AC Series, it belongs to the range of products of that series.A temperature below 75°C is best for using it.The device must run at -25°C degrees.A number of features make the Backshell, Cable Clamp feature more powerful.Cable represents the mounting point for the part.-25°C~75°C Operating Temperature is the default operating temperature for the device.
AC5MB Features
AC series
AC5MB Applications
There are a lot of Amphenol Sine Systems Corp
AC5MB Circular Connectors applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
