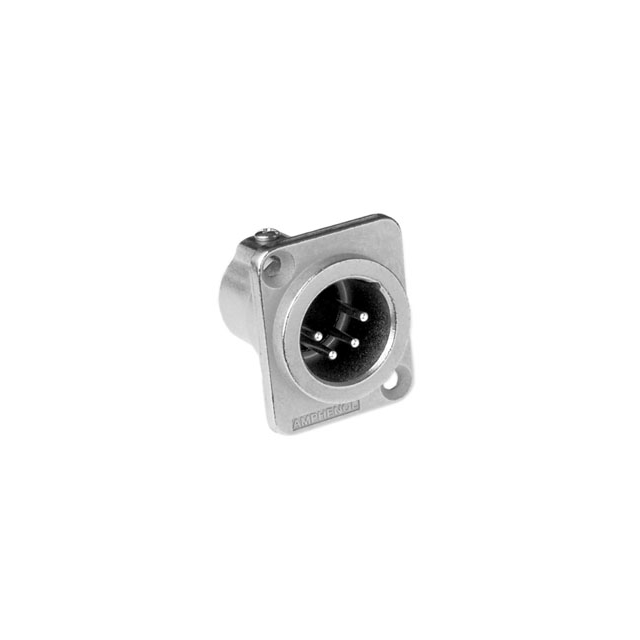

AC4MDZ
Or copy the link below:
- Mfr.Part #
- AC4MDZ
- Manufacturer
- Amphenol Audio
- Package / Case
- Metal
- Datasheet
- Download
- Description
- CONN RCPT MALE XLR 4P SOLDER CUP
- Stock
- 108
- In Stock ：
- 108
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol Audio
- Product Category :
- Circular Connector Assemblies
- Current Rating (Amps) :
- 10A
- Voltage - Rated DC :
- 133V
- Mounting Feature :
- Flange
- Min Operating Temperature :
- -25°C
- REACH SVHC :
- No SVHC
- Number of Contacts :
- 4
- Factory Lead Time :
- 12 Weeks
- Operating Temperature :
- -25°C~75°C
- Color :
- Silver
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Positions :
- 4
- Number of Pins :
- 4
- Contact Plating :
- Silver
- Length :
- 26mm
- Published :
- 2000
- Current Rating :
- 10A
- Ingress Protection :
- IP40
- Height :
- 31mm
- Mount :
- Panel
- RoHS Status :
- ROHS3 Compliant
- Body Material :
- Metal
- Feature :
- Ground
- Contact Material :
- Brass
- Fastening Type :
- Push-Pull
- Connector Type :
- Receptacle, Male Pins
- Shielding :
- Shielded
- Material Flammability Rating :
- UL94 V-0
- Shell Finish :
- Nickel
- Gender :
- Male
- Number of Ports :
- 1
- Plating :
- Nickel
- Insulation Resistance :
- 1GOhm
- Orientation :
- Keyed
- Mounting Type :
- Panel Mount
- Applications :
- Audio
- Package / Case :
- Metal
- Ratings :
- IP40
- Series :
- AC Z
- Max Operating Temperature :
- 75°C
- Flammability Rating :
- UL94 V-0
- Contact Finish - Mating :
- Silver
- Voltage - Rated AC :
- 50V
- Voltage - Rated :
- 133V
- Termination :
- Solder Cup
- Shell Material :
- Zinc Die Cast
- Contact Resistance :
- 3mOhm
- Shell Size - Insert :
- XLR
- Datasheets
- AC4MDZ
AC4MDZ Documents
Receptacle, Male Pins Zinc Die Cast Panel Mount 4 Positions Solder Cup Silver Nickel Keyed Push-Pull
AC4MDZ Overview
Packaging is Receptacle, Male Pins.Panel Mount is the mounting type.As a product of the AC Z Series, it can be found in this category.It has 4 pins.Temperatures below 75°C are best for using it.There's a minimum temperature of -25°C for this device.An enclosed device is enclosed in the packaging with the Metal.With its Ground feature, it is more powerful in many ways.In this case, Panel mounts the part.The device is operating at -25°C~75°C Operating Temperature.
AC4MDZ Features
AC Z series
AC4MDZ Applications
There are a lot of Amphenol Sine Systems Corp
AC4MDZ Circular Connectors applications.
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
