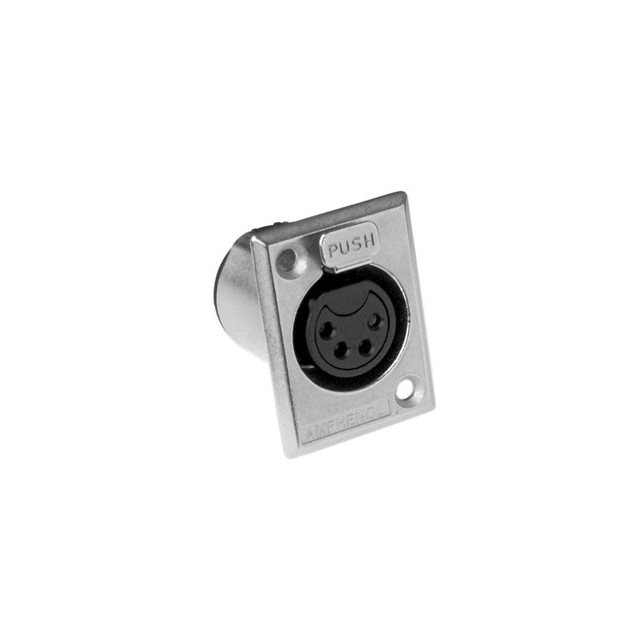

AC4FPZ

Manufacturer :

Amphenol Audio

Product Category :

Circular Connector Assemblies

Rated Current (Signal) :

10 A

Standard :

Standard XLR

Configuration :

1X1 VERTICAL

Mating Cycles :

1000 Cycle

Termination Type :

Solder

MIL Conformance :

No

Product Category :

XLR Connectors

Termination Method :

Solder

Contact Material :

Brass

Brand :

Amphenol Audio

Number of Contacts :

3

Minimum Operating Temperature :

-25°C

RoHS :

Compliant

Packaging :

Bulk

Max Operating Temperature :

75 °C

IEC Conformance :

No

Orientation :

Straight

Housing Material :

Zinc

Min Operating Temperature :

-25 °C

Manufacturer :

Amphenol

Depth :

34.1 mm

Contact Resistance :

3 mΩ

DIN Conformance :

No

Maximum Operating Temperature :

+75°C

Mounting Type :

Panel Mount

Current Rating :

10 A

Additional Feature :

STANDARD: IEC-268-12

Termination Style :

Solder Cup

Max Current Rating :

10 A

Color :

Nickel

Shell Material :

ZINC ALLOY

Reach Compliance Code :

Unknown

Termination :

Solder

Voltage Rating :

133 V

Number of Terminals :

4

Product :

Connectors

Mounting Style :

Chassis Mount

Mount :

Panel

Option :

GENERAL PURPOSE

Number of Positions :

4 Position

Subcategory :

Audio and Video Connectors

Body Orientation :

Straight

Contact Gender :

FEMALE

Product Type :

XLR Connectors

Contact Plating :

Silver

Series :

AC

Body/Shell Style :

Socket

Number of Poles :

4

Gender :

FEMALE

Connector Type :

AUDIO/RCA CONNECTOR

Length :

27.2 mm

Number of Ports :

1

Factory Lead Time :

12 Weeks
