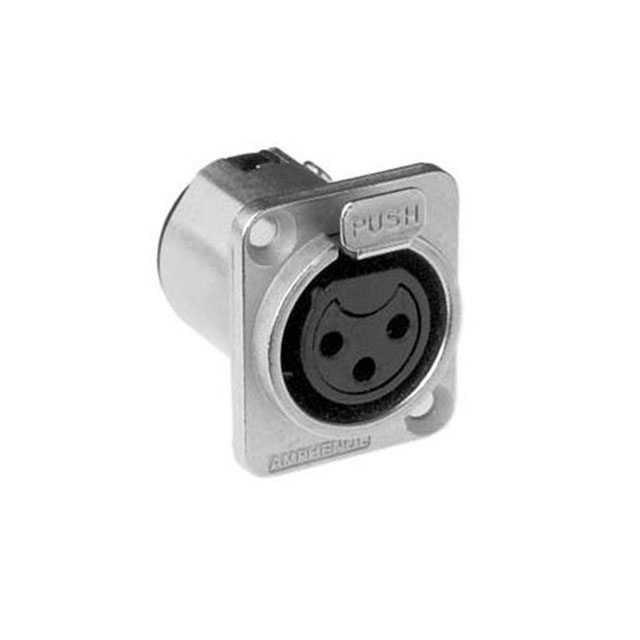

AC3FDZ
Or copy the link below:
- Mfr.Part #
- AC3FDZ
- Manufacturer
- Amphenol Audio
- Package / Case
- Datasheet
- Download
- Description
- CONN PLUG FMALE XLR 3P SLDR CUP
- Stock
- 195
- In Stock ：
- 195
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol Audio
- Product Category :
- Circular Connector Assemblies
- Number of Terminations :
- 3
- Factory Lead Time :
- 12 Weeks
- Shell Material :
- Zinc Die Cast
- Max Current Rating :
- 15A
- Contact Material :
- Bronze
- Voltage - Rated AC :
- 50V
- Body Material :
- Metal
- Shell Finish :
- Nickel
- Reach Compliance Code :
- Unknown
- Orientation :
- Keyed
- Gender :
- FEMALE
- Mounting Feature :
- Flange
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Mounting Type :
- Panel Mount
- Number of Ports :
- 1
- DIN Conformance :
- No
- Published :
- 2006
- Contact Resistance :
- 3mOhm
- REACH SVHC :
- No SVHC
- Option :
- GENERAL PURPOSE
- Mount :
- Panel
- Voltage - Rated DC :
- 133V
- Connector Type :
- Plug, Female Sockets
- Length :
- 26mm
- Termination :
- Solder Cup
- IEC Conformance :
- No
- Contact Plating :
- Tin
- Series :
- AC Z
- Flammability Rating :
- UL94 V-0
- Number of Poles :
- 3
- Feature :
- Ground
- Height :
- 31mm
- Shielding :
- Shielded
- Operating Temperature :
- -25°C~75°C
- Contact Finish - Mating :
- Silver
- Depth :
- 33.1mm
- Ingress Protection :
- IP40
- Packaging :
- Bulk
- RoHS Status :
- ROHS3 Compliant
- MIL Conformance :
- No
- Insulation Resistance :
- 1GOhm
- Current Rating :
- 15A
- Shell Size - Insert :
- XLR
- Fastening Type :
- Latch Lock
- Datasheets
- AC3FDZ
AC3FDZ Documents
Plug, Female Sockets Zinc Die Cast Panel Mount Solder Cup Silver Nickel Bulk Keyed Latch Lock
AC3FDZ Overview
Packaging for this item is Plug, Female Sockets.There is a mounting type of Panel Mount for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the AC Z Series.In many ways, its Ground feature makes it more powerful.Panel is used to mount the part.In this case, the device operates at -25°C~75°C Operating Temperature.
AC3FDZ Features
3 basic kinds of terminations
AC Z series
AC3FDZ Applications
There are a lot of Amphenol Sine Systems Corp
AC3FDZ Circular Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
