AB01BV1
Or copy the link below:
- Mfr.Part #
- AB01BV1
- Manufacturer
- Sanken Electric Co., Ltd.
- Package / Case
- Axial
- Datasheet
- Download
- Description
- DIODE GEN PURP 800V 500MA AXIAL
- Stock
- 2,619
- In Stock ：
- 2,619
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sanken Electric Co., Ltd.
- Product Category :
- Diodes - Rectifiers - Single
- Current - Reverse Leakage @ Vr :
- 10μA @ 800V
- Max Reverse Voltage (DC) :
- 800V
- Published :
- 2008
- Technology :
- Standard
- Reach Compliance Code :
- Unknown
- Package :
- Cut Tape (CT);Tape and Box (TB);
- Product Status :
- Active
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mounting Type :
- Through Hole
- RoHS Status :
- RoHS Compliant
- Series :
- --
- Manufacturer :
- Sanken Electric Co Ltd
- Capacitance @ Vr, F :
- --
- Current - Average Rectified (Io) :
- 500mA
- Average Rectified Current :
- 500mA
- Factory Lead Time :
- 12 Weeks
- Base Product Number :
- AB01
- Supplier Device Package :
- Axial
- ECCN Code :
- EAR99
- Reverse Recovery Time (trr) :
- 200ns
- Diode Type :
- Standard
- Operating Temperature - Junction :
- -40°C~150°C
- Package / Case :
- Axial
- Mount :
- Through Hole
- Voltage - DC Reverse (Vr) (Max) :
- 800V
- Speed :
- Fast Recovery =< 500ns, > 200mA (Io)
- Packaging :
- Tape and Box (TB)
- Reverse Recovery Time :
- 200 ns
- Voltage - Forward (Vf) (Max) @ If :
- 2V @ 500mA
- Datasheets

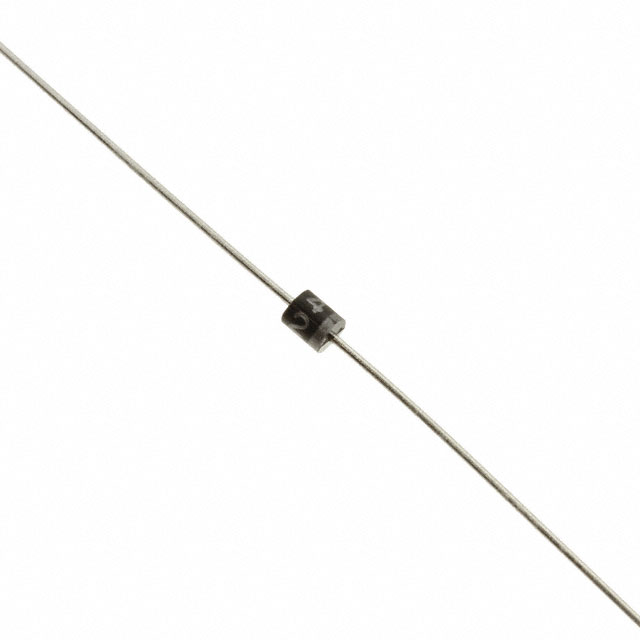

- AB01BV1
.JPG)
Standard Diode Rectifier Fast Recovery =< 500ns, > 200mA (Io) 2V @ 500mA -40°C~150°C 10μA @ 800V Tape & Box (TB) Axial Through Hole
AB01BV1 Overview
As a result, this device has a rectified current of 500mA volts on average.
AB01BV1 Features
an average rectified current of 500mA volts
AB01BV1 Applications
There are a lot of Sanken
AB01BV1 applications of single-phase diode rectifier.
- DC motor control and drives
- Battery chargers
- Welders
- Power converters
- Reverse Polarity Protection
- Ultra High-Speed Switching
- Freewheeling
- Polarity Protection Diode
- Recirculating Diode
- Switching Diode
