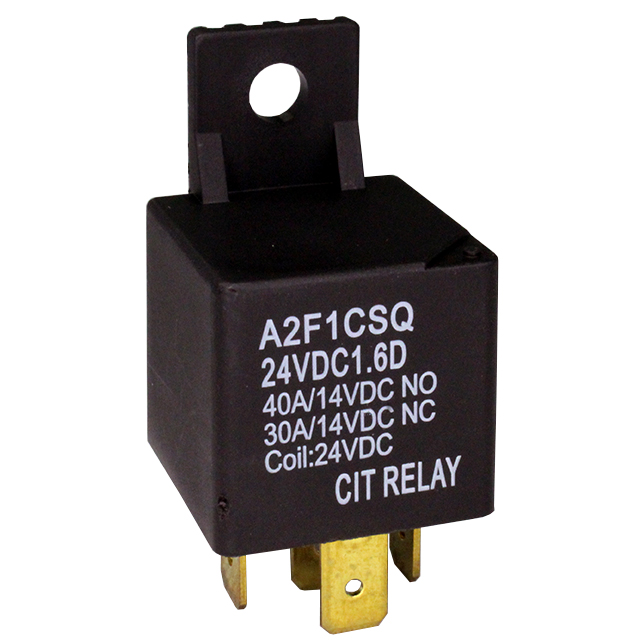

A2F1CSQ24VDC1.6D

Manufacturer :

CIT Relay and Switch

Product Category :

Automotive Relays

Contact Finish - Mating :

Gold

Termination Style :

Quick Connect - 0.250 (6.3mm)

Color :

Silver

Applications :

Military

Product Status :

Active

Must Release Voltage :

2.4 VDC

Series :

MIL-DTL-38999 Series III, Tri-Start™ HD

Coil Power :

1.6W

Shell Finish :

Electroless Nickel

Mounting Type :

Panel Mount, Through Hole

Contact Finish Thickness - Mating :

50.0µin (1.27µm)

Number of Positions :

151

Must Operate Voltage :

16.8 VDC

Release Time :

5 ms

Operate Time :

7 ms

Coil Voltage :

24VDC

Coil Current :

66.7 mA

Switching Voltage :

75VDC - Max

Orientation :

C

Features :

-

Shell Material :

Composite

Material Flammability Rating :

-

Voltage Rating :

-

Shell Size, MIL :

-

Termination :

Solder

Connector Type :

Receptacle, Female Sockets

Contact Form :

SPDT (1 Form C)

Base Product Number :

CTV07RF

Mounting Feature :

Bulkhead - Front Side Nut

Package :

Bulk

Contact Material :

COPPER ALLOY

Cable Opening :

-

Shielding :

Shielded

Shell Size - Insert :

23-151

Coil Resistance :

360 Ohms

Backshell Material, Plating :

-

Ingress Protection :

Environment Resistant

Contact Rating (Current) :

40 A

Current Rating (Amps) :

-

Fastening Type :

Threaded

Coil Type :

Non Latching

Operating Temperature :

-65°C ~ 175°C

Insert Material :

-

Primary Material :

Composite
