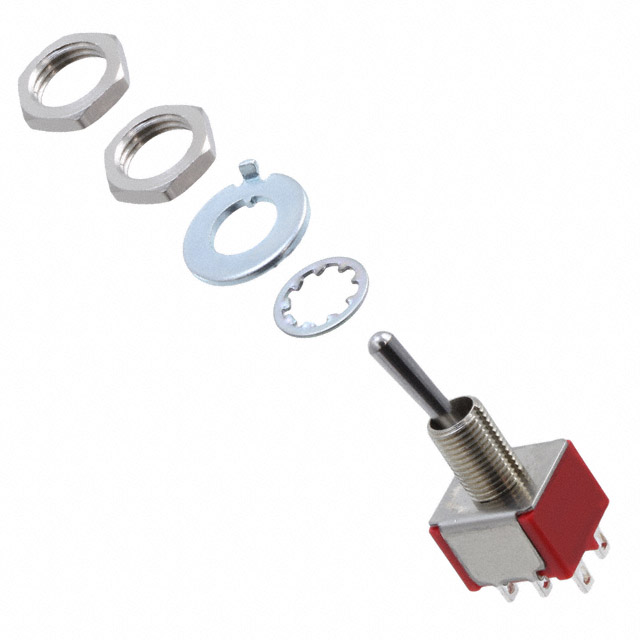

A211SYZQ

Manufacturer :

TE Connectivity ALCOSWITCH Switches

Product Category :

Contact Current(DC)-Max :

2A

ELV :

Non-Compliant

Packaging :

Bulk

Termination Style :

Solder Lug

Orientation :

Straight

Body Length or Diameter :

12.7mm

Flammability Rating :

UL94 V-0

Mounting Type :

Panel Mount

Body Breadth :

11.43 mm

RoHS Status :

Non-RoHS Compliant

Body Height :

9.09mm

Operating Temperature :

-20°C~85°C

Mount :

Panel

Current Rating :

5A

Current Rating (Amps) :

5A AC/DC

Contact (AC) Max Rating R Load :

5A@125VAC

Contact Current(AC)-Max :

5A

Switch Type :

TOGGLE SWITCH

Bushing Thread :

1/4-40

Lead Free :

Contains Lead

Contact Material :

Silver

Panel Cutout Dimensions :

Circular - 6.35mm Dia

Voltage - Rated AC :

120V

HTS Code :

8536.50.90.65

Circuit :

SP3T

Reach Compliance Code :

Unknown

Sealing :

EPOXY TERMINAL SEALED

ECCN Code :

EAR99

Max Voltage Rating (AC) :

250V

Switch Function :

On-On-On

Actuator Length :

10.41mm

Electrical Life :

6,000 Cycles

Actuator Type :

Standard Round

Contact (DC) Max Rating R Load :

2A@30VDC

Published :

2016

Voltage - Rated DC :

28V

JESD-609 Code :

e4

Termination :

Solder

Moisture Sensitivity Level (MSL) :

Not Applicable

Illumination :

Non-Illuminated

Max Voltage Rating (DC) :

30V

Feature :

Jumper needed to achieve triple throw

Series :

Gemini A
