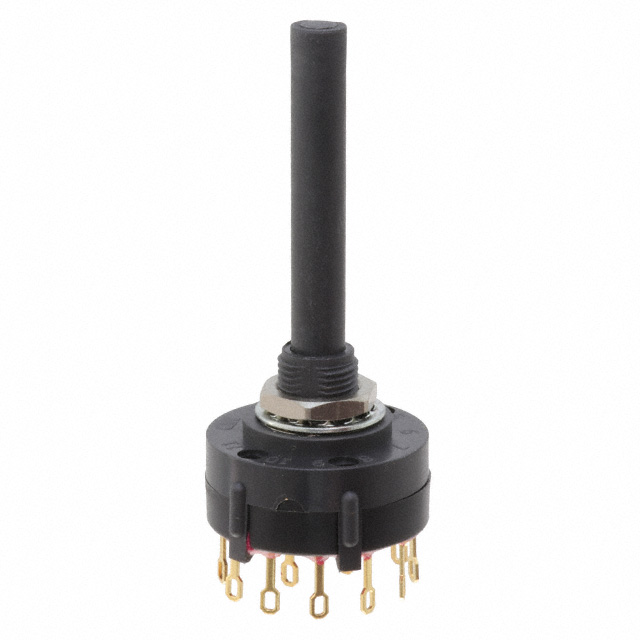

A20615RSZBK
Or copy the link below:
- Mfr.Part #
- A20615RSZBK
- Manufacturer
- C&K
- Package / Case
- Datasheet
- Download
- Description
- SWITCH ROTARY 6POS 0.4VA 20V
- Stock
- 16,066
- In Stock ：
- 16,066
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- C&K
- Product Category :
- Orientation :
- Straight
- Length :
- 26.19mm
- Factory Lead Time :
- 16 Weeks
- Contact Style :
- Shorting
- Voltage - Rated DC :
- 20V
- Electrical Life :
- 300000 cycles
- Circuit per Deck :
- DP6T
- Number of Decks :
- 1
- Feature :
- Epoxy Sealed Terminals, Splashproof Bushing Seal
- Min Operating Temperature :
- -30°C
- Max Voltage Rating (AC) :
- 20V
- Actuator Length :
- 38.10mm
- Number of Positions :
- 6
- Published :
- 2016
- Number of Poles per Deck :
- 2
- Mount :
- Panel
- Index Angle :
- 30 °
- Current Rating (Amps) :
- 0.4VA AC/DC
- Max Voltage Rating (DC) :
- 20V
- Depth :
- 26.19mm
- Actuator Material :
- Glass, Nylon
- Actuator Type :
- Flatted (6.35mm Dia)
- Index Stops :
- FIXED
- Termination Style :
- Solder Lug
- RoHS Status :
- ROHS3 Compliant
- Mounting Type :
- Panel Mount
- Depth Behind Panel :
- 20.83mm
- Contact Finish :
- Gold
- Housing Material :
- Nylon
- Series :
- A
- Max Operating Temperature :
- 85°C
- Panel Cutout Dimensions :
- Circular - 9.80mm Dia
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Voltage - Rated AC :
- 20V
- Contact Timing :
- Shorting (MBB)
- Contact Material :
- COPPER ALLOY
- Termination :
- Solder
- Datasheets
- A20615RSZBK
