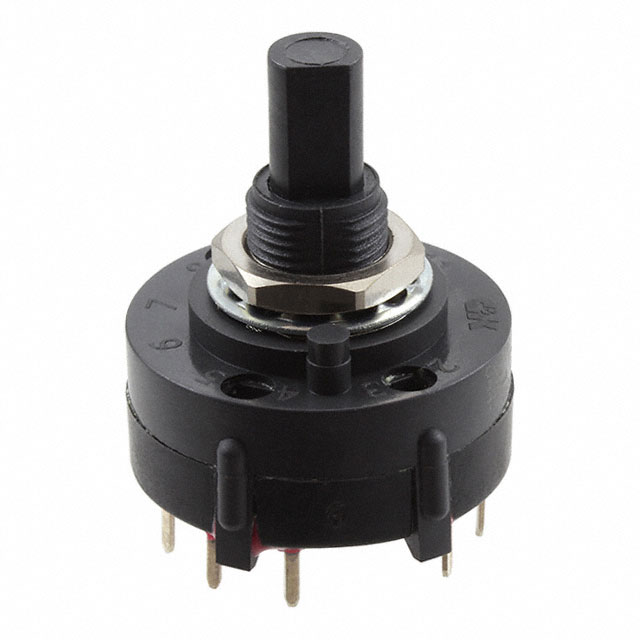

A20503RSCQE

Manufacturer :

C&K

Product Category :

Mount :

Panel, Through Hole

Max Voltage Rating (DC) :

125V

Index Stops :

FIXED

Max Current Rating :

2.5A

Current Rating (Amps) :

2.5A AC 350mA DC

Series :

A

Actuator Material :

Glass, Nylon

Max Operating Temperature :

85°C

Voltage - Rated DC :

125V

Feature :

Epoxy Sealed Terminals

Contact Timing :

Shorting (MBB)

Panel Cutout Dimensions :

Circular - 9.80mm Dia

Actuator Type :

Flatted (6.35mm Dia)

Factory Lead Time :

16 Weeks

Max Voltage Rating (AC) :

125V

Actuator Length :

9.53mm

Contact Finish :

Silver

Housing Material :

Nylon

Number of Decks :

1

Throw Configuration :

DP, DP5T

Contact Style :

Shorting

Orientation :

Straight

Index Angle :

30 °

Min Operating Temperature :

-30°C

Length :

26.19mm

Electrical Life :

300000 cycles

RoHS Status :

ROHS3 Compliant

Number of Positions :

5

Contact Material :

Silver (Ag)

Number of Poles per Deck :

2

Termination :

PC Pins

Depth :

26.19mm

Lead Free :

Lead Free

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Circuit per Deck :

DP5T

Published :

2012

Termination Style :

PC Pin

Mounting Type :

Panel Mount, Through Hole

Voltage - Rated AC :

125V

Current Rating :

2.5A

Depth Behind Panel :

14.48mm
