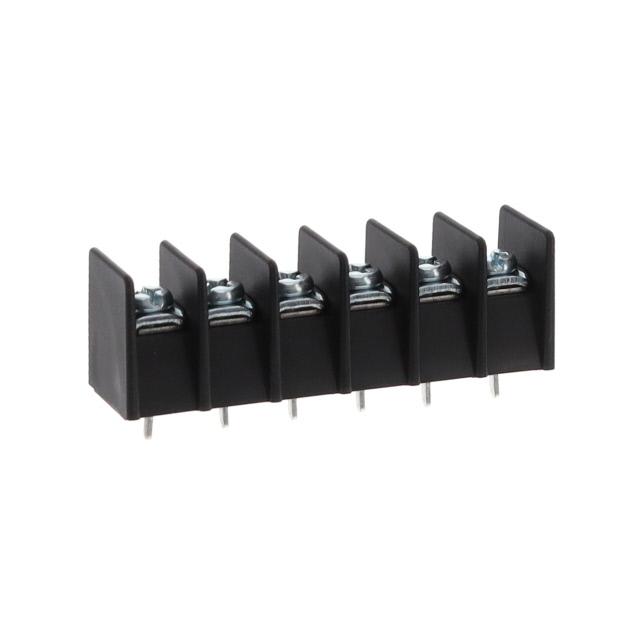

A20220607

Manufacturer :

Eaton-Electronics Division

Product Category :

Barrier Blocks

Pitch :

0.375 9.53mm

Wire Gauge :

12-22 AWG

Barrier Type :

2 Wall (Dual)

Number of Contacts :

6

Number of Rows :

1

Top Termination :

Screws with Captive Plate

Current Rating :

30A

Color :

Black

Number of Circuits :

6

Factory Lead Time :

16 Weeks

Mounting Type :

Through Hole

Weight :

453.59237mg

Wire Gauge (Max) :

22 AWG

RoHS Status :

Non-RoHS Compliant

Number of Wire Entries :

6

Termination :

Solder

Housing Color :

Black

Series :

A2000

Packaging :

Bulk

Material - Insulation :

Thermoplastic

Terminal Screw Material :

Steel

Terminal Block Type :

Barrier Block

Max Operating Temperature :

105°C

Mount :

Through Hole

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Orientation :

Straight

Material Flammability Rating :

UL94 V-0

Current Rating (Amps) :

30A

Voltage - Rated :

300V

Published :

2014

Wire Gauge (Min) :

12 AWG

Operating Temperature :

-40°C~105°C

Min Operating Temperature :

-40°C

Bottom Termination :

PC Pin

Flammability Rating :

UL94 V-0
