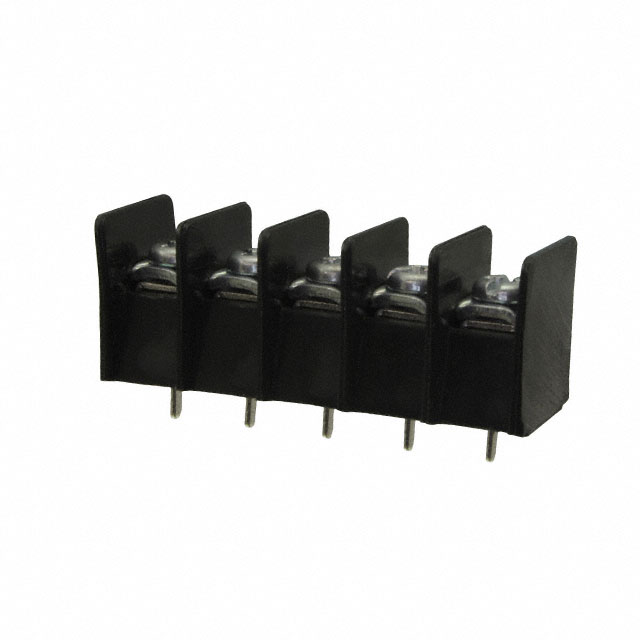

A20220507
Or copy the link below:
- Mfr.Part #
- A20220507
- Manufacturer
- Eaton-Electronics Division
- Package / Case
- Datasheet
- Download
- Description
- CONN BARRIER STRIP 5CIRC 0.375"
- Stock
- 405
- In Stock ：
- 405
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Eaton-Electronics Division
- Product Category :
- Barrier Blocks
- Series :
- A2000
- Top Termination :
- Screws with Captive Plate
- Feature :
- Positions Stamped
- Factory Lead Time :
- 16 Weeks
- Color :
- Black
- Number of Contacts :
- 5
- Voltage - Rated :
- 300V
- Flammability Rating :
- UL94 V-0
- Housing Color :
- Black
- Number of Wire Entries :
- 5
- Current Rating :
- 30A
- Wire Gauge (Max) :
- 22 AWG
- Bottom Termination :
- PC Pin
- Operating Temperature :
- -40°C~105°C
- Packaging :
- Bulk
- Mount :
- Through Hole
- Number of Rows :
- 1
- Terminal Block Type :
- Barrier Block
- Barrier Type :
- 2 Wall (Dual)
- Material - Insulation :
- Thermoplastic
- Wire Gauge (Min) :
- 12 AWG
- Weight :
- 453.59237mg
- Material Flammability Rating :
- UL94 V-0
- Terminal Screw Material :
- Steel
- Mounting Type :
- Through Hole
- Min Operating Temperature :
- -40°C
- RoHS Status :
- Non-RoHS Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Orientation :
- Straight
- Wire Gauge :
- 12-22 AWG
- Termination :
- Solder
- Current Rating (Amps) :
- 30A
- Number of Circuits :
- 5
- Published :
- 2014
- Max Operating Temperature :
- 105°C
- Pitch :
- 0.375 9.53mm
- Datasheets
- A20220507
Bulk 1 Rows Through Hole Barrier Block PC Pin A2000 0.375 9.53mm 2 Wall (Dual) 5 Circuits Thermoplastic
A20220507L1 Overview
Mounting type Through Hole is assigned to the device.Packaging the product involves using a Bulk case.Among the products in the A2000 Series, it is one of the most popular.It works best at below 105°C.The device must be operated at a temperature of -40°C.A number of benefits can be derived from the Positions Stamped feature of this application.Through Hole is the mounting point for the part.Circuits number 5.-40°C~105°C Operating Temperature is used by the device.
A20220507L1 Features
A2000 series
A20220507L1 Applications
There are a lot of Eaton - Electronics Division
A20220507L1 Terminal Blocks applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
