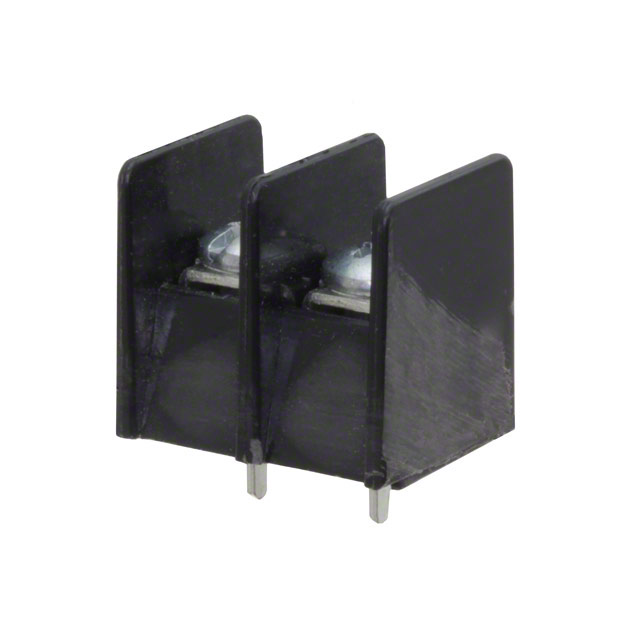

A202202
Or copy the link below:
- Mfr.Part #
- A202202
- Manufacturer
- Eaton-Electronics Division
- Package / Case
- Datasheet
- Download
- Description
- CONN BARRIER STRIP 2CIRC 0.375"
- Stock
- 20
- In Stock ：
- 20
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Eaton-Electronics Division
- Product Category :
- Barrier Blocks
- Terminal Screw Material :
- Steel
- Number of Circuits :
- 2
- Top Termination :
- Screws with Solder Lugs, Single
- Max Operating Temperature :
- 105°C
- Orientation :
- Straight
- Operating Temperature :
- -40°C~105°C
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Weight :
- 453.59237mg
- Pitch :
- 0.375 9.53mm
- Termination :
- Solder
- Current Rating :
- 30A
- Wire Gauge :
- 12-22 AWG
- Current Rating (Amps) :
- 30A
- Voltage - Rated :
- 300V
- Barrier Type :
- 2 Wall (Dual)
- Terminal Screw Finish :
- Zinc
- Mounting Type :
- Through Hole
- Number of Rows :
- 1
- Terminal Block Type :
- Barrier Block
- Number of Contacts :
- 2
- Min Operating Temperature :
- -40°C
- Color :
- Black
- Published :
- 2014
- Flammability Rating :
- UL94 V-0
- Material Flammability Rating :
- UL94 V-0
- Packaging :
- Bulk
- Wire Gauge (Max) :
- 22 AWG
- Mount :
- Through Hole
- Bottom Termination :
- PC Pin
- Number of Wire Entries :
- 2
- Material - Insulation :
- Thermoplastic
- Wire Gauge (Min) :
- 12 AWG
- Series :
- A2000
- RoHS Status :
- Non-RoHS Compliant
- Housing Color :
- Black
- Factory Lead Time :
- 16 Weeks
- Datasheets
- A202202
Bulk 1 Rows Through Hole Barrier Block PC Pin A2000 0.375 9.53mm 2 Wall (Dual) 2 Circuits Thermoplastic
A202202S1 Overview
This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the A2000 Series.If the temperature is below 105°C, it's best to use it.-40°C is the minimum temperature for this device.There is a mounting hole at Through Hole.This part has 2 circuits.Devices operate at -40°C~105°C operating temperatures.
A202202S1 Features
A2000 series
A202202S1 Applications
There are a lot of Eaton - Electronics Division
A202202S1 Terminal Blocks applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
