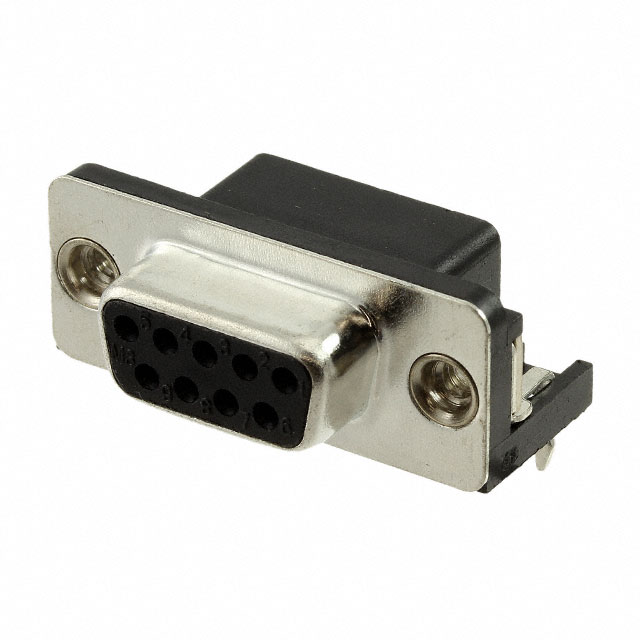

A-DF 09 A/KG-T4S
Or copy the link below:
- Mfr.Part #
- A-DF 09 A/KG-T4S
- Manufacturer
- ASSMANN WSW Components
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB RCPT 9POS R/A SLDR
- Stock
- 13,823
- In Stock ：
- 13,823
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- ASSMANN WSW Components
- Product Category :
- D-Sub Connector Assemblies
- Voltage - Rated :
- 250V
- Contact Material :
- COPPER ALLOY
- Material Flammability Rating :
- UL94 V-0
- Connector Style :
- D-Sub
- Color :
- Black
- Number of Positions :
- 9
- Empty Shell :
- No
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Filter Feature :
- No
- Termination :
- Solder
- IEC Conformance :
- No
- Shell Material, Finish :
- Steel, Tin Plated
- Factory Lead Time :
- 23 Weeks
- Shell Size, Connector Layout :
- 1 DE E
- Contact Finish :
- Gold
- Backset Spacing :
- 0.319 (8.10mm)
- Contact Type :
- Signal
- Operating Temperature :
- -55°C~105°C
- Dielectric Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Number of Rows :
- 2
- Insulation Material :
- GLASS FILLED THERMOPLASTIC PBT
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Total Number of Contacts :
- 9
- Shell Finish :
- Tin
- Published :
- 2014
- Feature :
- Board Lock
- DIN Conformance :
- No
- Contact Finish Thickness :
- Flash
- MIL Conformance :
- No
- RoHS Status :
- ROHS3 Compliant
- Option :
- GENERAL PURPOSE
- Mounting Type :
- Through Hole, Right Angle
- Mixed Contacts :
- No
- Packaging :
- Tray
- Connector Type :
- Receptacle, Female Sockets
- Current Rating (Amps) :
- 3A
- Flange Feature :
- Housing/Shell (4-40)
- Datasheets
- A-DF 09 A/KG-T4S
A-DF 09 A/KG-T4S Documents
D-Sub Receptacle, Female Sockets 9-Position Signal Solder 1 DE E Through Hole, Right Angle Copper Alloy Gold Steel, Tin Plated
A-DF 09 A/KG-T4S Overview
Packaging is Receptacle, Female Sockets.This device has a Through Hole, Right Angle mounting type.An orange Tray case is used to package the product.Several benefits come from the Board Lock feature.Devices operate at -55°C~105°C operating temperatures.
A-DF 09 A/KG-T4S Features
A-DF 09 A/KG-T4S Applications
There are a lot of Assmann WSW Components
A-DF 09 A/KG-T4S D-Sub Connectors applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
