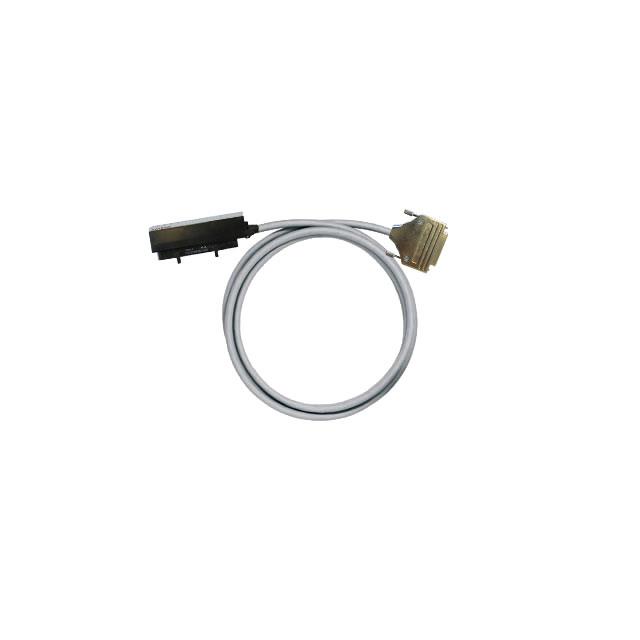

995299

Manufacturer :

Weidmuller

Product Category :

Wire to Board

Number of Rows :

1

Number of Ways :

6

Packaging :

Bulk

Number of Levels :

1

Reach Compliance Code :

Compliant

Contact Material - Plating :

Copper Alloy - Tin Plated

Operating Temperature :

-20°C~100°C

Moisture Sensitivity Level (MSL) :

Not Applicable

ECCN Code :

EAR99

Wire Gauge (Max) :

26 AWG

Wire Termination :

Screw - Clamping Yoke, Tension Sleeve

Number of Decks :

1

Housing Material :

Polyamide (PA66), Nylon 6/6

Factory Lead Time :

5 Weeks

Radiation Hardening :

No

Series :

Omnimate LP

Torque - Screw :

0.5-0.6 Nm (4.4-5.3 Lb-In)

Color :

Black

RoHS Status :

Non-RoHS Compliant

Feature :

Interlocking (Side)

Pitch :

0.295 7.50mm

Terminal and Terminal Block Type :

BARRIER STRIP TERMINAL BLOCK

Contact Plating :

Tin

Safety Approval :

UL; VDE; CSA

Number of Contacts :

6

Wire Gauge (Min) :

12 AWG

Mount :

Through Hole

Current :

15A

Orientation :

Straight

Wire Gauge :

12-26 AWG

Mating Orientation :

Horizontal with Board

Termination :

Screw

Mounting Type :

Through Hole

Voltage :

300V

Screw Thread :

M3
