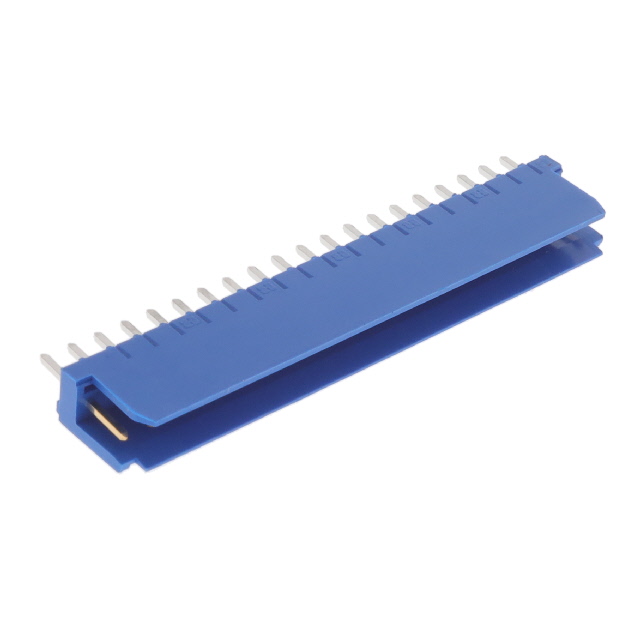

98481-320LF
Or copy the link below:
- Mfr.Part #
- 98481-320LF
- Manufacturer
- Amphenol Communications Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 20POS 2.54MM
- Stock
- 83
- In Stock ：
- 83
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol Communications Solutions
- Product Category :
- Headers, Male Pins
- Number of Rows :
- 1
- Contact Finish - Mating :
- Gold, GXT™
- Contact Length - Post :
- 0.134 3.40mm
- Depth :
- 5.3mm
- Contact Finish Thickness - Post :
- 78.7μin 2.00μm
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Series :
- Dubox™
- Voltage - Rated :
- 1kV
- Contact Material :
- Phosphor Bronze
- Max Operating Temperature :
- 125°C
- Number of Positions Loaded :
- All
- Contact Finish - Post :
- Tin
- Contact Shape :
- Square
- Max Voltage Rating (AC) :
- 1kV
- Mounting Type :
- Through Hole
- Connector Type :
- Header
- Packaging :
- Tube
- Shrouding :
- Shrouded - 2 Wall
- Length :
- 50.62mm
- Orientation :
- Straight
- Fastening Type :
- Friction Lock
- Pitch - Mating :
- 0.100 2.54mm
- Gender :
- Male
- Insulation Color :
- Blue
- Style :
- Board to Cable/Wire
- Lead Length :
- 3.4mm
- RoHS Status :
- RoHS Compliant
- Housing Color :
- Blue
- Insulation Height :
- 0.368 9.35mm
- Pitch :
- 2.54mm
- Material Flammability Rating :
- UL94 V-0
- Color :
- Blue
- Termination :
- Solder
- Contact Type :
- Male Pin
- Contact Length - Mating :
- 0.197 5.00mm
- Mount :
- Through Hole
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Positions :
- 20
- Housing Material :
- Polyester
- Mating Post Length :
- 5mm
- Insulation Material :
- Polyester, Glass Filled
- Min Operating Temperature :
- -40°C
- Current Rating :
- 3A
- Number of Contacts :
- 20
- Contact Plating :
- GXT, Gold
- Factory Lead Time :
- 8 Weeks
- Datasheets
- 98481-320LF
98481-320LF Documents
Dubox™ Series 1-Row Header Solder Phosphor Bronze Tube Through Hole Gold, GXT™ Polyester, Glass Filled 20-Position Board to Cable/Wire 0.368 9.35mm Height
98481-320LF Overview
Currently, it is packaged in Header.Mounting type Through Hole is assigned to the device.Packaging the product involves using a Tube case.Among the products in the Dubox™ Series, it is one of the most popular.It works best at below 125°C.The device must be operated at a temperature of -40°C.Through Hole is the mounting point for the part.
98481-320LF Features
Dubox™ series
98481-320LF Applications
There are a lot of Amphenol ICC (FCI)
98481-320LF Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
