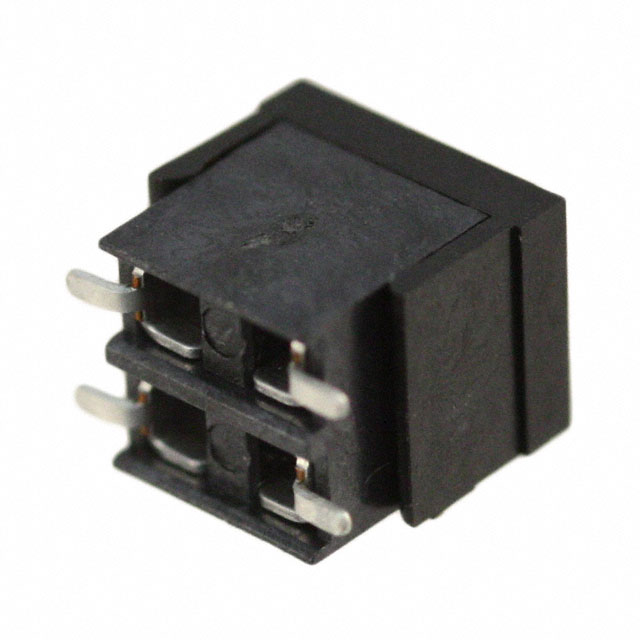

966204-2000-AR-PR
Or copy the link below:
- Mfr.Part #
- 966204-2000-AR-PR
- Manufacturer
- 3M
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 4POS 0.1 GOLD SMD
- Stock
- 18,590
- In Stock ：
- 18,590
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- 3M
- Product Category :
- Headers, Receptacles, Female Sockets
- Published :
- 2012
- Contact Finish Thickness - Post :
- 40.0μin 1.02μm
- Material Flammability Rating :
- UL94 V-0
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Series :
- 966
- Packaging :
- Tape and Reel (TR)
- Color :
- Black
- Max Operating Temperature :
- 105°C
- Fastening Type :
- Push-Pull
- Insulation Material :
- Thermoplastic
- Pitch :
- 2.54mm
- Number of Rows :
- 2
- Current Rating (Amps) :
- 2A
- Contact Finish Thickness - Mating :
- Flash
- Contact Plating :
- Gold
- Contact Shape :
- Square
- Min Operating Temperature :
- -25°C
- Insulation Color :
- Black
- Operating Temperature :
- -25°C~105°C
- Contact Finish - Mating :
- Gold
- Voltage - Rated :
- 1000VDC
- Feature :
- Pick and Place
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Connector Type :
- Receptacle, Bottom or Top Entry
- Contact Material :
- COPPER ALLOY
- Mounting Type :
- Surface Mount
- Mount :
- Surface Mount
- Termination :
- Solder
- Current Rating :
- 2A
- Number of Contacts :
- 4
- Contact Gender :
- FEMALE
- Pitch - Mating :
- 0.100 2.54mm
- Factory Lead Time :
- 9 Weeks
- Insulation Height :
- 0.197 5.00mm
- Contact Finish - Post :
- Tin
- Contact Type :
- Female Socket
- RoHS Status :
- RoHS Compliant
- Number of Positions :
- 4
- Number of Positions Loaded :
- All
- Flammability Rating :
- UL94 V-0
- Housing Material :
- Thermoplastic
- Radiation Hardening :
- No
- Style :
- Board to Board
- Datasheets
- 966204-2000-AR-PR
2 Rows Receptacle, Bottom or Top Entry Solder Copper Alloy Surface Mount Tape & Reel (TR) Gold Thermoplastic 4 Positions Female Socket
966204-2000-AR-PR Overview
The product comes in a package of Receptacle, Bottom or Top Entry.Surface Mount is the type of mounting for the device.To package the product, a Tape & Reel (TR) case is used.The product is a member of the 966 Series.Use it when the temperature is below 105°C.Temperatures below -25°C are required for this device to operate.It is more powerful in many ways due to its Pick and Place feature.It is mounted by Surface Mount.It operates at an operating temperature of -25°C~105°C.
966204-2000-AR-PR Features
966 series
966204-2000-AR-PR Applications
There are a lot of 3M
966204-2000-AR-PR Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
