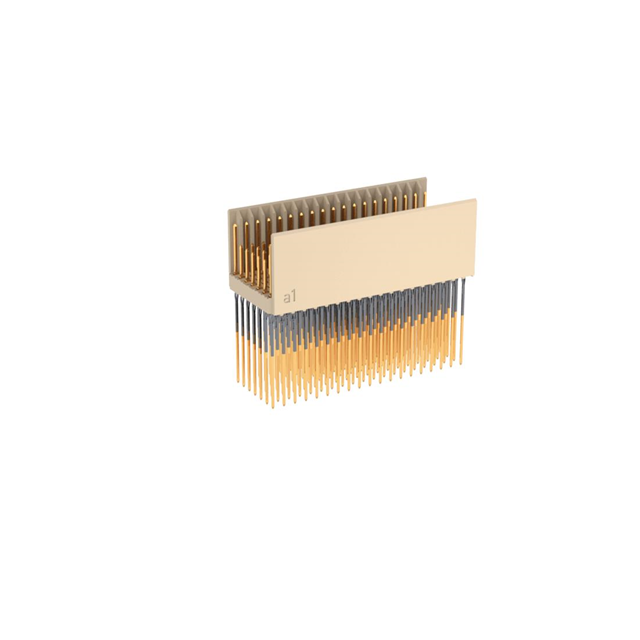

914793

Manufacturer :

TE Connectivity

Product Category :

Hard Metric, Standard

ECCN Code :

EAR99

Mating Contact Pitch :

0.079 inch

Contact Pattern :

RECTANGULAR

DIN Conformance :

No

Product Depth (mm) :

15.4(mm)

Reference Standard :

UL, CSA

Terminal Length :

0.63 inch

Body Depth :

0.53 inch

Mating Contact Row Spacing :

0.079 inch

Additional Feature :

COMPACTPCI, STANDARD: IEC 61076-4-101, 19 GROUND SHIELD CONTACTS AVAILABLE IN 2 ROWS

Connector Type :

BOARD CONNECTOR

Body Orientation :

Straight

Subcategory :

Headers and Edge Type Connectors

PCB Contact Row Spacing :

2.0066 mm

Termination Method :

Press Fit

Termination Type :

Press Fit

Product Height (mm) :

13.45(mm)

Filter Feature :

No

Product Length (mm) :

38(mm)

Body Breadth :

0.606 inch

Terminal Pitch :

2 mm

Insulation Resistance :

10000000000 Ω

Dielectric Withstanding Voltage :

750VAC V

Reliability :

COMMERCIAL

Contact Plating :

Gold

Rated Current (Signal) :

1.5 A

JESD-609 Code :

e3

Number of Contact Rows :

7

Contact Resistance :

20 mΩ

Withdrawl Force-Min :

.139 N

Contact Finish Termination :

Tin (Sn)

Contact Style :

SQ PIN-SKT

Pitch (mm) :

2(mm)

Contact Gender :

Male

Operating Temp Range :

-55C to 125C

Durability :

500 Cycles

Pbfree Code :

yes

Mounting Option 1 :

LOCKING

Type :

Hard Metric

IEC Conformance :

yes

HTS Code :

8536.69.40.30

Polarization Key :

ENDS

Option :

GENERAL PURPOSE

Insertion Force-Max :

.7228 N

Reach Compliance Code :

Compliant

MIL Conformance :

No

Manufacturer :

ERNI

UL Flammability Code :

94V-0

Gender :

M

Mounting Type :

BOARD

Mixed Contacts :

No

Contact Material :

Phosphor Bronze

Number of Contacts :

133(POS)

PCB Contact Pattern :

RECTANGULAR

Number Of PCB Rows :

7

Total Number of Contacts :

133

Mounting Style :

Through Hole
