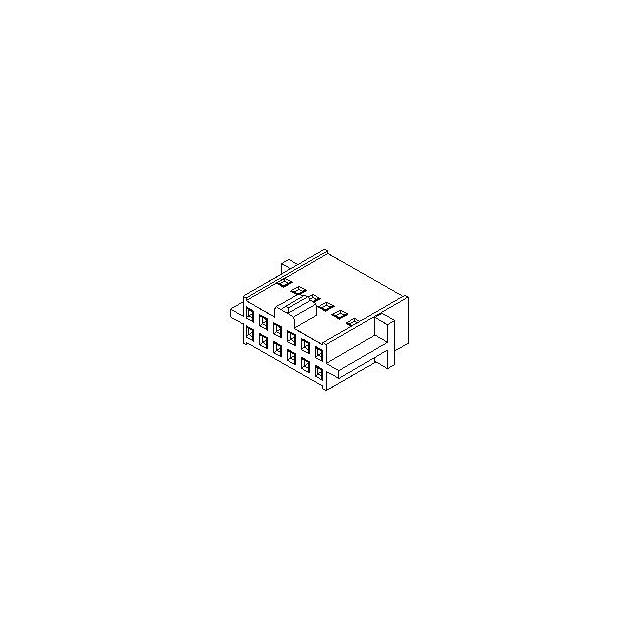

90160-0150

Manufacturer :

Molex

Product Category :

Rectangular Connector Housings

Number of Contact Rows :

2

Additional Feature :

C-GRID III, COMPATIBLE CONTACTS: 90119-0109; 90119-0110, POLARIZED

Factory Lead Time :

7 Weeks

Subcategory :

Headers and Wire Housings

Brand :

Molex

Product :

Wire Housings

DIN Conformance :

No

MIL Conformance :

No

Body Depth :

0.6 inch

UL Flammability Code :

94V-1

Manufacturer :

Molex

Pitch :

2.5400 mm

Product Status :

Active

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Mixed Contacts :

No

Minimum Operating Temperature :

- 55 C

Contact Gender :

Socket (Female)

Termination Type :

Crimp

Product Length :

68.27 mm

Mating Contact Pitch :

0.1 inch

Polarization Key :

POLARIZED HOUSING

Option :

GENERAL PURPOSE

Body/Shell Style :

PLUG

IEC Conformance :

No

Housing Material :

POLYPHENYLENE OXIDE

Reliability :

COMMERCIAL

Current Rating (Max) :

3/Contact(A)

Body Orientation :

Straight

Panel Mount :

No

Product Depth (mm) :

7.72(mm)

Product Length (mm) :

68.27(mm)

Pitch (mm) :

2.54(mm)

Number of Positions :

50 Position

Mounting Type :

Cable Mount

Mounting Option 1 :

LOCKING MECH

Color :

Black

Contact Material :

NOT SPECIFIED

Number of Rows :

2

RoHS :

Details

Product Category :

Headers and Wire Housings

Maximum Operating Temperature :

+ 105 C

Series :

C-GRID III

Base/Housing Material :

PPO (Polyphenylene Oxide)

ECCN Code :

EAR99

Package :

Box

Packaging :

Bag

HTS Code :

8536.69.40.40

Insulator Color :

Black

Application :

Power

Total Number of Contacts :

50

Product Height (mm) :

15.24(mm)

Connector Type :

BOARD CONNECTOR

Body Breadth :

0.284 inch

Type :

Housing

Length :

68.27mm

Mounting :

Cable Mount

Number of Contacts :

50(POS)

Contact Pattern :

RECTANGULAR

Insulation Resistance :

1000000000 Ω

Reference Standard :

UL, CSA

Reach Compliance Code :

Compliant

Operating Temperature :

-55 to 105 °C

Product Type :

Headers and Wire Housings

Gender :

Receptacle

Pbfree Code :

yes

Filter Feature :

No

For Use With :

C-Grid III Connector

Tradename :

C-Grid

Housing Color :

Black

Voltage Rating Max :

350V

Operating Temp Range :

-55C to 105C

Mating Contact Row Spacing :

0.1 inch

Termination Style :

Crimp

Mounting Style :

Cable Mount / Free Hanging
