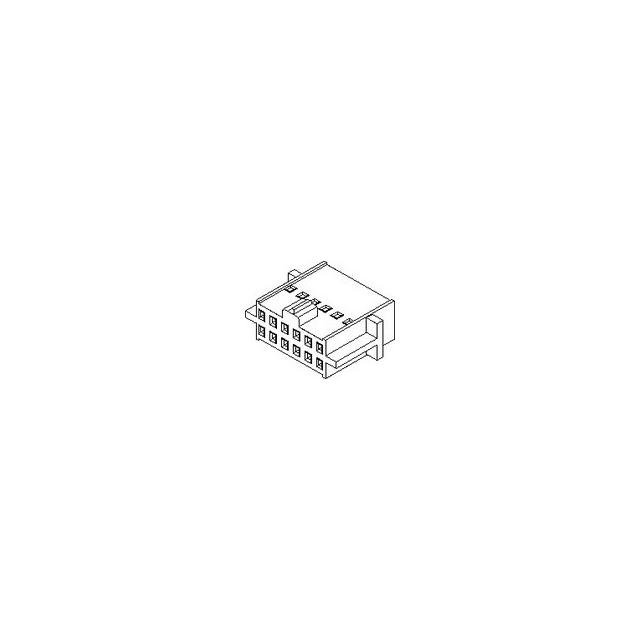

90160-0120

Manufacturer :

Molex

Product Category :

Rectangular Connector Housings

Body/Shell Style :

PLUG

ECCN Code :

EAR99

Brand :

Molex

Connector Type :

BOARD CONNECTOR

Number of Contacts :

20

Filter Feature :

No

Mounting :

Cable Mount

Contact Pattern :

RECTANGULAR

Termination Style :

Crimp

Reliability :

COMMERCIAL

Operating Temperature :

-55 to 105 °C

Pitch :

2.5400 mm

Minimum Operating Temperature :

- 55 C

RoHS :

Details

HTS Code :

8536.69.40.40

Manufacturer :

Molex

Option :

GENERAL PURPOSE

Body Orientation :

Straight

Housing Material :

PPO

Body Depth :

0.6 inch

Insulator Color :

Black

Reference Standard :

UL, CSA

Mounting Style :

Cable Mount / Free Hanging

Application :

Power

Series :

C-GRID III

CS :

2.54mm

Packaging :

Bulk

Maximum Operating Temperature :

+ 105 C

Mating Contact Row Spacing :

0.1 inch

Panel Mount :

No

Current Rating :

3 A

Contact Material :

NOT SPECIFIED

Product :

Wire Housings

Polarization Key :

POLARIZED HOUSING

Length :

30.17mm

Total number of pins :

20

Factory Lead Time :

7 Weeks

Content :

1pc(s)

DIN Conformance :

No

Reach Compliance Code :

Compliant

Mating Contact Pitch :

0.1 inch

Product Category :

Headers and Wire Housings

Insulation Resistance :

1000000000 Ω

Color :

Black

Packaging type :

Bag

Min. temperature :

-55°C

Number of Positions :

20 Position

Number of Rows :

2

Gender :

Receptacle

Body Breadth :

0.284 inch

Mounting Type :

Cable Mount

Tradename :

C-Grid

For Use With :

C-Grid III Connector

No. of rows :

2

Type :

Molex MOL Power and Signal Sol.

Pbfree Code :

yes

Product Length :

30.17 mm

MIL Conformance :

No

Contact Gender :

Socket (Female)

Additional Feature :

C-GRID III, COMPATIBLE CONTACTS: 90119-0109; 90119-0110, POLARIZED

Housing Color :

Black

UL Flammability Code :

94V-1

Max. temperature :

+105°C

IEC Conformance :

No

Base/Housing Material :

PPO (Polyphenylene Oxide)

Manufacturer part # :

901600120

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

RoHS-compliant :

yes

Total Number of Contacts :

20

Mixed Contacts :

No

Subcategory :

Headers and Wire Housings

Mounting Option 1 :

LOCKING MECH

Termination Type :

Crimp

Product Type :

Headers and Wire Housings
