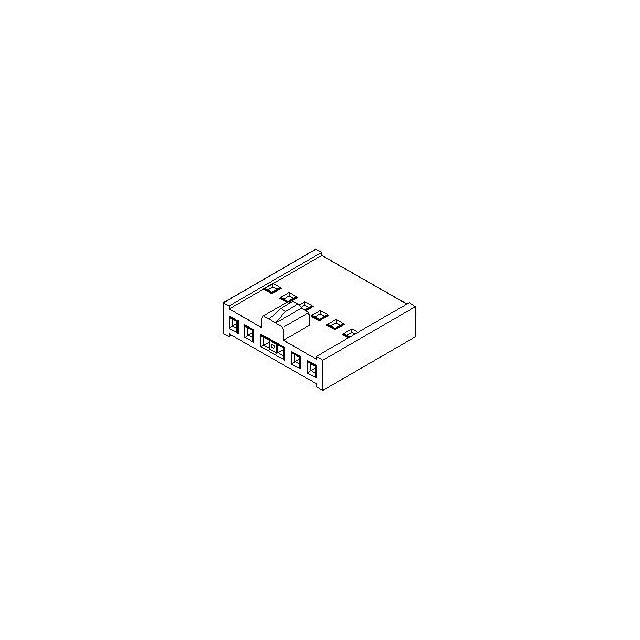

90156-0160

Manufacturer :

Molex

Product Category :

Rectangular Connector Housings

Insertion Force-Max :

2.9468 N

ECCN Code :

EAR99

Min Operating Temperature :

-55°C

Published :

1999

Pbfree Code :

yes

Housing Material :

PPO

Lead Free :

Lead Free

Reference Standard :

UL

HTS Code :

8536.69.40.40

Contact Finish - Mating :

NOT SPECIFIED

Mount :

Cable, Free Hanging

Factory Lead Time :

12 Weeks

REACH SVHC :

Unknown

Max Operating Temperature :

105°C

MIL Conformance :

No

Termination :

Crimp

Lead Pitch :

2.54mm

Current Rating :

3A

Orientation :

Straight

Width :

5.35mm

Depth :

15.24mm

Insulation Resistance :

5GOhm

Length :

51.86mm

Material :

Polyphenylene

Option :

GENERAL PURPOSE

Mixed Contacts :

No

Color :

Black

Contact Resistance :

20mOhm

Durability :

500 Cycles

IEC Conformance :

No

DIN Conformance :

No

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Contact Gender :

FEMALE

Number of Rows :

1

Connector Type :

Power, Receptacle, Rectangular, Socket

Glow Wire Compliant :

Non-Compliant

Reliability :

COMMERCIAL

Body/Shell Style :

PLUG

Rated Current (Signal) :

3A

Filter Feature :

No

Gender :

Receptacle

Number of Contacts :

20

Voltage - Rated AC :

350V

RoHS Status :

RoHS Compliant

Pitch :

2.54mm

Fastening Type :

Ramp

Contact Style :

SQ PIN-SKT
