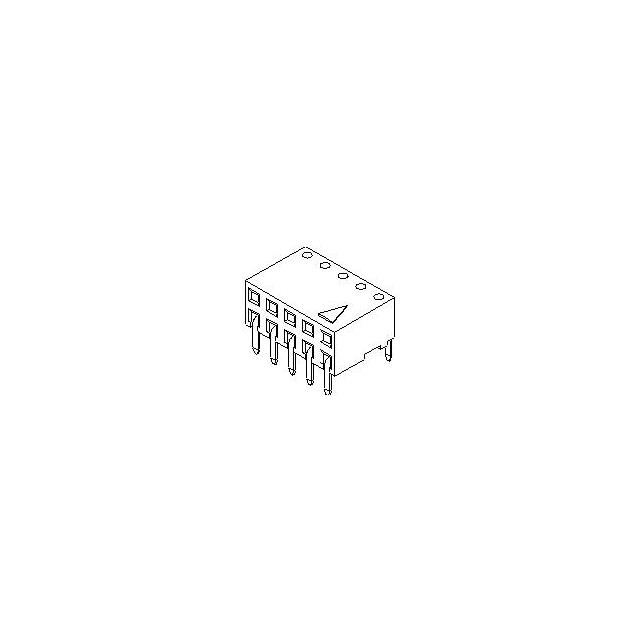

90152-2208
- Mfr.Part #
- 90152-2208
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- 2.54MM PITCH C-GRID III PC BOARD
- Stock
- 2,806
- In Stock :
- 2,806
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Receptacles, Female Sockets
- Orientation :
- RIGHT ANGLE
- Package :
- Box
- Product Status :
- Active
- Contact Material :
- Phosphor Bronze
- Number of Positions :
- 8 Position
- Termination :
- Solder
- Number of Rows :
- 2
- Factory Lead Time :
- 9 Weeks
- Current Rating (Max) :
- 3/Contact(A)
- Minimum Operating Temperature :
- - 55 C
- Product Depth (mm) :
- 8.5(mm)
- Contact Gender :
- FEMALE
- Housing Material :
- Polyester
- Reach Compliance Code :
- Compliant
- Base/Housing Material :
- Polyester
- Terminal Pitch :
- 2.54 mm
- Termination Type :
- Solder
- Voltage Rating Max :
- 350VDC/350VAC
- Mounting Angle :
- RIGHT ANGLE
- Pitch :
- 2.5400 mm
- Brand :
- Molex
- Termination Style :
- Solder Pin
- Product :
- Headers
- Lifecycle Status :
- Production (Last Updated: 2 years ago)
- Country of Origin :
- SG
- Body Orientation :
- RIGHT ANGLE
- Number of Contact Rows :
- 2
- Operating Temperature :
- -55 to 125 °C
- Current Rating :
- 3 A
- Mount :
- Through Hole
- Contact Plating :
- Gold
- IEC Conformance :
- No
- Subcategory :
- Headers and Wire Housings
- Product Length (mm) :
- 10.16(mm)
- Mounting Style :
- Through Hole
- Mounting :
- Through Hole
- Manufacturer Lifecycle Status :
- ACTIVE (Last Updated: 2 years ago)
- Option :
- GENERAL PURPOSE
- Maximum Operating Temperature :
- + 125 C
- RoHS :
- Compliant
- Number of Contacts :
- 8(POS)
- Radiation Hardening :
- No
- Tradename :
- C-Grid
- Connector Type :
- BOARD CONNECTOR
- Termination Method :
- Solder
- Product Type :
- Headers and Wire Housings
- Pbfree Code :
- yes
- Operating Temp Range :
- -55C to 125C
- Voltage Rating (AC) :
- 350 V
- Gender :
- RCP
- Housing Color :
- Black
- Voltage Rating :
- 350 VAC/DC
- Packaging :
- Tube
- Number of Circuits :
- 8
- Mounting Type :
- BOARD
- MIL Conformance :
- No
- Plating :
- Tin
- Type :
- Socket Strip
- Pitch (mm) :
- 2.54(mm)
- Product Height (mm) :
- 5.84(mm)
- DIN Conformance :
- No
- Mixed Contacts :
- No
- Product Category :
- Headers and Wire Housings
- Total Number of Contacts :
- 8
- Manufacturer :
- Molex
- Series :
- 90152
- Filter Feature :
- No
- Datasheets
- 90152-2208
