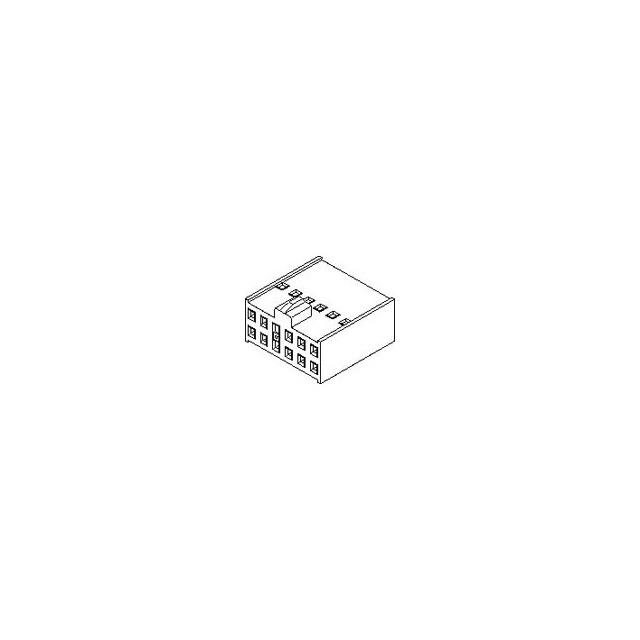

90142-0010

Share

Or copy the link below:

Mfr.Part #
90142-0010
Manufacturer
Molex
Package / Case
Housing
Datasheet
Download
Description
C-GRID CRP CONN HSG DR FL POLZ 1
Stock
6,320
In Stock :
6,320

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Molex
Product Category :
Rectangular Connector Housings
Contact Gender :
FEMALE
Number of Positions :
10
Schedule B :
8536695050, 8536695050/8536695050, 8536695050/8536695050/8536695050, 8536695050/8536695050/8536695050/8536695050
Flammability Rating :
UL94 V-0
Mount :
CABLE
Orientation :
Straight
Body Orientation :
Straight
Body Material :
Polyphenylene
Max Current Rating :
3 A
Radiation Hardening :
No
Product Length :
12.7 mm
Halogen Free :
Low Halogen
Pitch :
2.5400 mm
Country of Origin :
SG
Max. temperature :
+105°C
Lead Free :
Lead Free
Number of Contacts :
10(POS)
Application :
Power
Width :
7.72 mm
Product Depth (mm) :
7.72(mm)
Content :
1pc(s)
Mounting :
Cable Mount
Housing Color :
Black
Voltage Rating Max :
350VDC/350VAC
Color :
Black
Number of Rows :
2
RoHS-compliant :
yes
Operating Temp Range :
-55C to 105C
Connector Type :
Power, Rectangular
Voltage Rating (AC) :
350 V
Product Height (mm) :
15.24(mm)
Package / Case :
Housing
RoHS :
Compliant
Depth :
15.24 mm
Base/Housing Material :
PPO (Polyphenylene Oxide)
Pitch (mm) :
2.54(mm)
Number of Contact Rows :
2
Housing Material :
POLYPHENYLENE OXIDE
Panel Mount :
No
Packaging type :
Bag
CS :
2.54mm
Total number of pins :
10
Lead Pitch :
2.54 mm
Gender :
Receptacle
Max Voltage Rating (DC) :
350.35 kV
Mounting Type :
Cable Mount
Manufacturer Lifecycle Status :
ACTIVE (Last Updated: 2 years ago)
Packaging :
Bag-packed
Max Operating Temperature :
105 °C
Min Operating Temperature :
-55 °C
For Use With :
90119 Crimp Terminal
Voltage Rating :
350 V
Number of Pins :
10
Series :
C-GRID III
Termination :
Crimp
Glow Wire Compliant :
Non-Compliant
Min. temperature :
-55°C
Lifecycle Status :
Production (Last Updated: 2 years ago)
Features :
+ locking mechanism
Current Rating :
3 A
Height :
7.72 mm
Current Rating (Max) :
3/Contact(A)
Type :
Molex MOL Power and Signal Sol.
Length :
12.7 mm
Contact Resistance :
20 mΩ
Manufacturer part # :
901420010
No. of rows :
2
REACH SVHC :
Unknown
Insulation Resistance :
5 GΩ
Operating Temperature :
-55 to 105 °C
Product Length (mm) :
12.7(mm)
RoHS Status :
RoHS Compliant
Introducing Rectangular Connector Housings Molex 90142-0010 from Chip IC,where excellence meets affordability. This product stands out with its Package / Case:Housing, Mounting Type:Cable Mount, Number of Pins:10, Type:Molex MOL Power and Signal Sol., Operating Temperature:-55 to 105 °C, 90142-0010 pinout, 90142-0010 datasheet PDF, 90142-0010 amp .Beyond Rectangular Connector Housings Molex 90142-0010 ,we also offer GHR-05V-S, 1-1123722-3, 0022013037, Our vast inventory has you covered. Contact us now for immediate solutions.
