901-10013-RFX
Or copy the link below:
- Mfr.Part #
- 901-10013-RFX
- Manufacturer
- Amphenol RF
- Package / Case
- SMA
- Datasheet
- Download
- Description
- CONN SMA JACK STR 50 OHM SOLDER
- Stock
- 67
- In Stock ：
- 67
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol RF
- Product Category :
- Coaxial Connector (RF) Assemblies
- Max Operating Temperature :
- 165°C
- Dielectric Material :
- Polytetrafluoroethylene (PTFE)
- Mating Cycles :
- 500
- Min Operating Temperature :
- -65°C
- Published :
- 2003
- Mount :
- Bulkhead, Cable, Front Side Nut, Panel
- Plating :
- Nickel
- Includes :

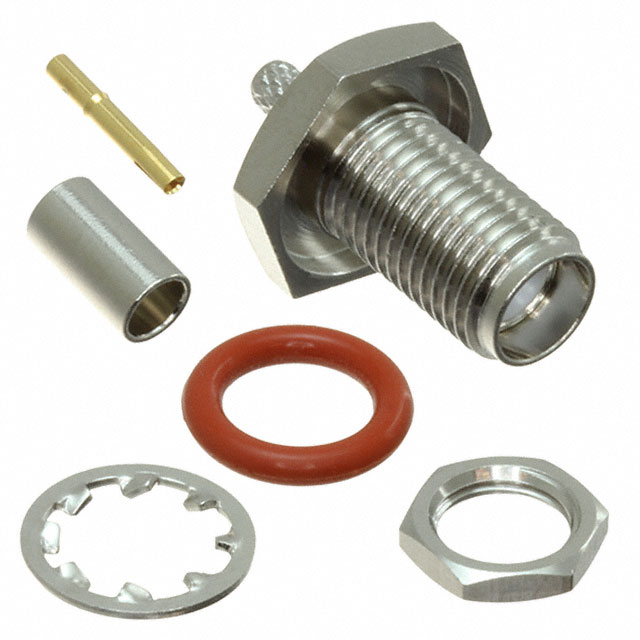

- 6 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Lockwasher, 1 Nut
- Contact Material :
- Copper
- Fastening Type :
- Threaded
- Mounting Type :
- Panel Mount
- Mounting Feature :
- Bulkhead - Front Side Nut
- Frequency (Max) :
- 12.4GHz
- Contact Plating :
- Gold
- Polarity :
- Standard
- Packaging :
- Bulk
- Housing Color :
- Silver
- Center Contact Material :
- BERYLLIUM COPPER
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Radiation Hardening :
- No
- Center Contact Plating :
- Gold
- Frequency :
- 12.4GHz
- Operating Temperature :
- -65°C~165°C
- Factory Lead Time :
- 9 Weeks
- Shield Termination :
- Crimp
- Termination :
- Solder
- Body Material :
- Brass
- Impedance :
- 50Ohm
- Number of Ports :
- 1
- Orientation :
- Straight
- Connector Type :
- Jack, Female Socket
- RoHS Status :
- RoHS Compliant
- Contact Termination :
- Solder
- Cable Group :
- RG-174, 188, 188A, 316, LMR-100, M17/119-RG174
- Body Plating :
- Nickel
- Body Finish :
- Nickel
- Package / Case :
- SMA
- Connector Style :
- SMA
- Voltage - Rated :
- 375V
- Datasheets
- 901-10013-RFX
Jack, Female Socket Threaded 50Ohm Bulk SMA Solder 1 Port Polytetrafluoroethylene (PTFE) -65°C~165°C
901-10013-RFX Overview
The packaging contains Jack, Female Socket.This device is mounted in the Panel Mount position.It has been determined that a Bulk case is necessary to package the product.When the temperature is below 165°C, it is best to use it.A minimum operating temperature of -65°C is required for this device.SMA indicates that the package contains an enclosed device.The device has 1 ports that can be used to manage a variety of tasks.Part Bulkhead, Cable, Front Side Nut, Panel is mounted to the part.As a result, the device runs at -65°C~165°C Operating Temperature.This device is extremely efficient when operated at a frequency of 12.4GHz.
901-10013-RFX Features
901-10013-RFX Applications
There are a lot of Amphenol RF
901-10013-RFX Coaxial Connectors applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
