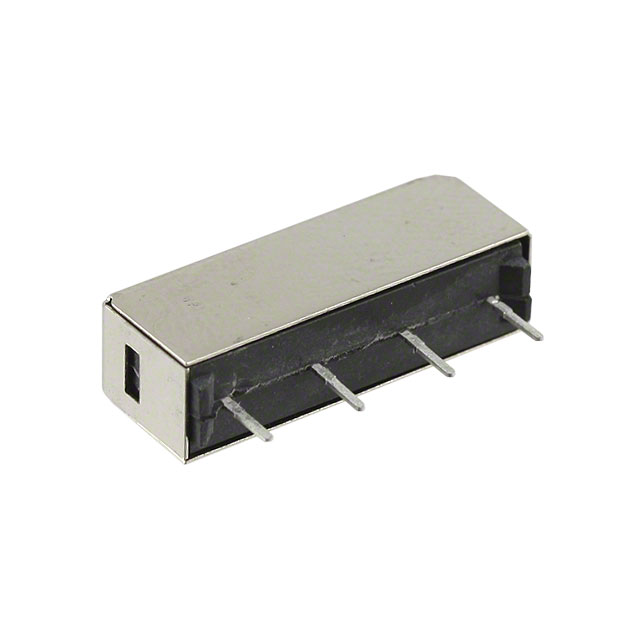

9007-05-11

Share

Or copy the link below:

Mfr.Part #
9007-05-11
Manufacturer
Coto Technology
Package / Case
Datasheet
Download
Description
RELAY REED SPST 500MA 5V
Stock
2,464
In Stock :
2,464

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Coto Technology
Product Category :
Reed Relays
Termination :
PC Pin
Relay Type :
Reed
Coil Type :
Non Latching
Series :
9000, Spartan
Contact Current(AC)-Max :
0.5A
Factory Lead Time :
25 Weeks
RoHS Status :
ROHS3 Compliant
Operating Temperature :
-20°C~85°C
Switching Current :
500mA
Coil Resistance :
500Ohm
Operate Time :
0.5ms
Dielectric Strength Between Open Contacts :
250 Vrms
Number of Terminations :
4
Coil Current :
10mA
Contact Form :
SPST-NO (1 Form A)
Release Time :
0.2ms
Contact Voltage(DC)-Max :
200V
Length - Termination :
0.0034 inch
Contact Current(DC)-Max :
0.5A
Reference Standard :
CSA; UL
Coil Voltage (DC) :
5V
Input Switching Control Type :
Random
Throw Configuration :
SPST
Body Breadth :
5.6 mm
JESD-609 Code :
e3
Mounting Type :
Through Hole
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Relay Action :
Momentary
PCB Hole Count :
4
Insulation Resistance :
10000000000Ohm
Packaging :
Tube
Physical Dimension :
19.8mm x 5.6mm x 8.1mm
Contact (DC) Max Rating R Load :
.5A@200VDC
Coil Power :
50mW
Body Height :
8.1mm
Pbfree Code :
yes
Mount :
Through Hole
Contact (DC) Max Power Rating R Load :
10W@200VDC
Electrical Life :
100000000 Cycle(s)
Published :
2010
ECCN Code :
EAR99
Coil Voltage :
5VDC
Contact (AC) Max Rating R Load :
.5A@200VAC
Must Release Voltage :
0.4VDC
Terminal Finish :
Matte Tin (Sn)
Feature :
Diode, EMI Shielded
Termination Style :
PC Pin
Body Length or Diameter :
19.8mm
Coil/Input Supply Type :
DC
HTS Code :
8536.49.00.50
Contact Voltage(AC)-Max :
200V
Contact/Output Supply Type :
AC/DC
Sealing :
Hermetically Sealed
Contact Resistance :
200mOhm
Must Operate Voltage :
3.75VDC
Dielectric Strength Between Coil and Contacts :
1500 Vrms
Switching Voltage :
200VAC 200VDC -Max
Datasheets
9007-05-11
Introducing Reed Relays Coto Technology 9007-05-11 from Chip IC,where excellence meets affordability. This product stands out with its Operating Temperature:-20°C~85°C, Number of Terminations:4, Mounting Type:Through Hole, 9007-05-11 pinout, 9007-05-11 datasheet PDF, 9007-05-11 amp .Beyond Reed Relays Coto Technology 9007-05-11 ,we also offer 8L01-12-001, HE722A1200, 3570-1419-054, Our vast inventory has you covered. Contact us now for immediate solutions.

Coto Technology 9007-05-11


9007-05-11 datasheet pdf and Reed Relays product details from Coto Technology stock available at
