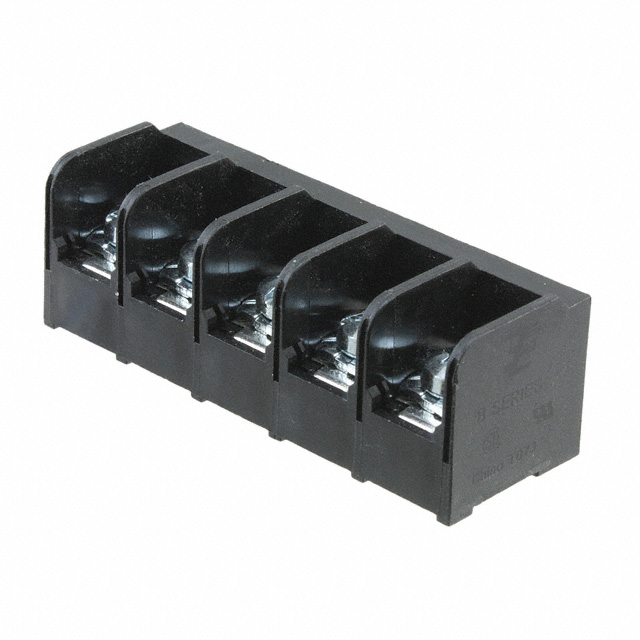

8PCV-05-006

Share

Or copy the link below:

Mfr.Part #
8PCV-05-006
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
CONN BARRIER STRIP 5CIRC 0.438"
Stock
4,407
In Stock :
4,407

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Barrier Blocks
Mounting Type :
Through Hole
Packaging :
Bulk
Top Termination :
Screws with Captive Plate
Material Flammability Rating :
UL94 V-0
Factory Lead Time :
16 Weeks
Color :
Black
Wire/Cable Gauge :
10 AWG
Pitch :
0.438 11.12mm
Mount :
Through Hole
Wire Gauge (Min) :
10 AWG
REACH SVHC :
Unknown
Material :
Thermoplastic
Orientation :
Straight
Wire Gauge (Max) :
10 AWG
Safety Approval :
UL; CSA
Depth :
20.32mm
Max Voltage Rating (AC) :
600V
Lifecycle Status :
ACTIVE (Last Updated: 3 days ago)
Width :
20.32mm
Height :
19.55mm
Terminal Block Type :
Barrier Block
Number of Rows :
1
Terminal Screw Finish :
Zinc
Wire Gauge :
10-18 AWG
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Termination :
Screw, Solder
Voltage :
600V
Terminal Screw Material :
Steel
Published :
2009
Series :
#8, Buchanan
Contact Plating :
Tin
Number of Decks :
1
Max Supply Voltage (AC) :
600V
ELV :
Compliant
Connector Type :
Terminal Block
Operating Temperature :
-40°C~120°C
Max Current Rating :
30A
Barrier Type :
3 Wall (Tri)
Number of Positions :
5
Lead Free :
Lead Free
Radiation Hardening :
No
Length :
57.4mm
Bottom Termination :
PC Pin
Number of Ways :
5
ECCN Code :
EAR99
RoHS Status :
RoHS Compliant
Additional Feature :
STANDARD: UL94V-0, POLYPROPYLENE
Flammability Rating :
UL94 V-0
Current Rating :
30A
Datasheets
8PCV-05-006
Introducing Barrier Blocks TE Connectivity AMP Connectors 8PCV-05-006 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Through Hole, Voltage:600V, Operating Temperature:-40°C~120°C, 8PCV-05-006 pinout, 8PCV-05-006 datasheet PDF, 8PCV-05-006 amp .Beyond Barrier Blocks TE Connectivity AMP Connectors 8PCV-05-006 ,we also offer 0387207504, 8PCV-04-006, 0387216703, Our vast inventory has you covered. Contact us now for immediate solutions.

TE Connectivity AMP Connectors 8PCV-05-006


Bulk 1 Rows Through Hole Barrier Block PC Pin #8, Buchanan 0.438 11.12mm 3 Wall (Tri)

8PCV-05-006 Overview


Currently, it is packaged in Terminal Block.The mounting type of the device is Through Hole.A Bulk case is used to package the product.A product of the #8, Buchanan Series, it belongs to the range of products of that series.Furthermore, there are other features available, such as STANDARD: UL94V-0, POLYPROPYLENE, to name a few.Through Hole represents the mounting point for the part.-40°C~120°C Operating Temperature is the default operating temperature for the device.

8PCV-05-006 Features


#8, Buchanan series


8PCV-05-006 Applications


There are a lot of TE Connectivity AMP Connectors
8PCV-05-006 Terminal Blocks applications.


  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
  • Control panels
  • Electrical substations
  • Energy efficient lighting (LED)
  • LED municipal outdoor and street lighting
  • All Electrical Machinery
  • Refrigeration control
