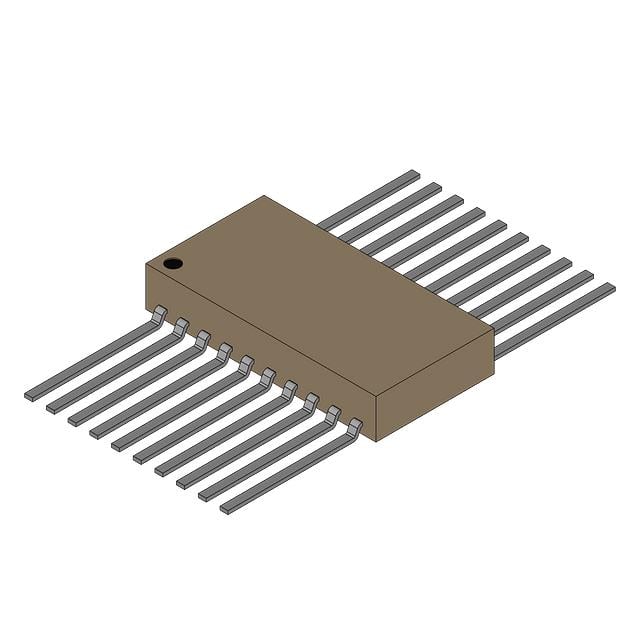

8407101SA

Manufacturer :

Texas Instruments

Product Category :

Buffers, Drivers, Receivers, Transceivers

Screening Level :

MIL-STD-883

Number of Pins :

20

Output Polarity :

TRUE

Number of Bits :

8

Pin Count :

20

Manufacturer :

Texas

Logic Function :

D-Type

Max Supply Voltage :

6 V

Base Product Number :

8407101

Length :

13.09 mm

Max I(ol) :

0.0078 A

Temperature Grade :

Military

Series :

*

Family :

HC

HTS Code :

8542.39.00.01

Power Supplies :

2/6 V

Subcategory :

Bus Driver/Transceiver

Package :

Tube

Qualification Status :

Qualified

Height :

2.45 mm

Lead Free :

Contains Lead

Control Type :

ENABLE LOW

Polarity :

Non-Inverting

Max Operating Temperature :

125 °C

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Terminal Form :

Flat

High Level Output Current :

-7.8 mA

Number of Outputs :

8

Min Operating Temperature :

-55 °C

Trigger Type :

POSITIVE EDGE

Seated Height-Max :

2.45 mm

JESD-30 Code :

R-GDFP-F20

Factory Lead Time :

1 Week

Reach Compliance Code :

not_compliant

Propagation Delay (tpd) :

270 ns

Width :

6.92 mm

Package Shape :

RECTANGULAR

Low Level Output Current :

7.8 mA

Brand Name :

Texas

Product Status :

Active

Count Direction :

Unidirectional

RoHS :

Compliant

Number of Ports :

2

Technology :

CMOS

Thickness :

1.84 mm

Surface Mount :

yes

Output Characteristics :

3-STATE

Terminal Position :

Dual

Number of Terminals :

20

Power Supply Current-Max (ICC) :

0.08 mA

Logic IC Type :

BUS DRIVER

Packing Method :

Tube

Lifecycle Status :

Production (Last Updated: 6 days ago)

Min Supply Voltage :

2 V

Operating Supply Voltage :

5 V

Supply Voltage-Min (Vsup) :

2 V

Supply Voltage-Max (Vsup) :

6 V

Mount :

Surface Mount

Terminal Pitch :

1.27 mm

Number of Functions :

1

Quiescent Current :

8 µA

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 6 days ago)
