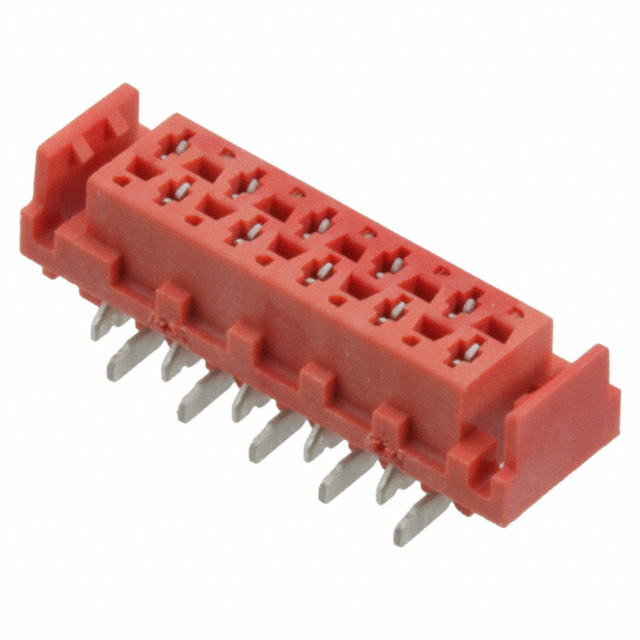

8-338069-0
Or copy the link below:
- Mfr.Part #
- 8-338069-0
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 10POS 0.1 TIN SMD
- Stock
- 28,489
- In Stock ：
- 28,489
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Receptacles, Female Sockets
- PCB Thickness :
- 1.6mm
- Number of Positions :
- 10
- Fastening Type :
- Friction Lock
- Height :
- 6.9mm
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Applications :
- Automotive, General Purpose
- Contact Material :
- Phosphor Bronze
- Color :
- Red
- Style :
- Board to Board or Cable
- Contact Finish - Post :
- Tin
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Mount :
- Surface Mount
- REACH SVHC :
- No SVHC
- Housing Color :
- Red, Black
- Number of Poles :
- 10
- Material :
- Glass, Polyester
- Termination :
- Solder
- Operating Supply Voltage :
- 100V
- Orientation :
- Vertical
- Connector Type :
- Receptacle
- Current Rating :
- 1.5A
- Housing Material :
- Polyamide
- Number of Positions Loaded :
- All
- Lead Free :
- Lead Free
- PCB Mounting Orientation :
- Vertical
- Series :
- Micro-MaTch
- Material Flammability Rating :
- UL94 V-0
- Pitch :
- 1.27mm
- Pitch - Mating :
- 0.100 2.54mm
- Operating Temperature :
- -40°C~105°C
- Depth :
- 5mm
- Gender :
- Receptacle
- Insulation Resistance :
- 1GOhm
- Published :
- 1997
- Contact Type :
- Forked
- ELV :
- Compliant
- Contact Resistance :
- 50mOhm
- Lead Length :
- 5.3mm
- PCB Mount Retention :
- Without
- Feature :
- Pick and Place
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Pins :
- 10
- Contact Current Rating :
- 1.4A
- Packaging :
- Tape and Reel (TR)
- RoHS Status :
- RoHS Compliant
- Number of Rows :
- 2
- Contact Finish - Mating :
- Tin
- Radiation Hardening :
- No
- Max Voltage Rating (DC) :
- 100V
- Min Operating Temperature :
- -30°C
- Mounting Type :
- Surface Mount
- Contact Plating :
- Tin
- Max Operating Temperature :
- 85°C
- Insulation Color :
- Red
- Voltage - Rated :
- 100Vdc
- Length :
- 17.3mm
- Contact Gender :
- FEMALE
- Voltage - Rated AC :
- 230V
- Insulation Height :
- 0.209 5.30mm
- Factory Lead Time :
- 23 Weeks
- Lead Pitch :
- 1.27mm
- Mating Connector Lock :
- Without
- Flammability Rating :
- UL94 V-0
- Insulation Material :
- Polyamide (PA46), Nylon 4/6, Glass Filled
- Number of Contacts :
- 10
- Datasheets
- 8-338069-0
2 Rows Receptacle Solder Phosphor Bronze Surface Mount Tape & Reel (TR) Tin Polyamide (PA46), Nylon 4/6, Glass Filled 10 Positions Forked
8-338069-0 Overview
Packaging is Receptacle.Surface Mount is the mounting type.Packaging for the product is carried out via a Tape & Reel (TR) case.As a product of the Micro-MaTch Series, it can be found in this category.It has 10 pins.Temperatures below 85°C are best for using it.There's a minimum temperature of -30°C for this device.A possible application of the device would be Automotive, General Purpose.With its Pick and Place feature, it is more powerful in many ways.In this case, Surface Mount mounts the part.The memory's operating supply voltage is 100V.The device is operating at -40°C~105°C Operating Temperature.
8-338069-0 Features
Micro-MaTch series
8-338069-0 Applications
There are a lot of TE Connectivity AMP Connectors
8-338069-0 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
