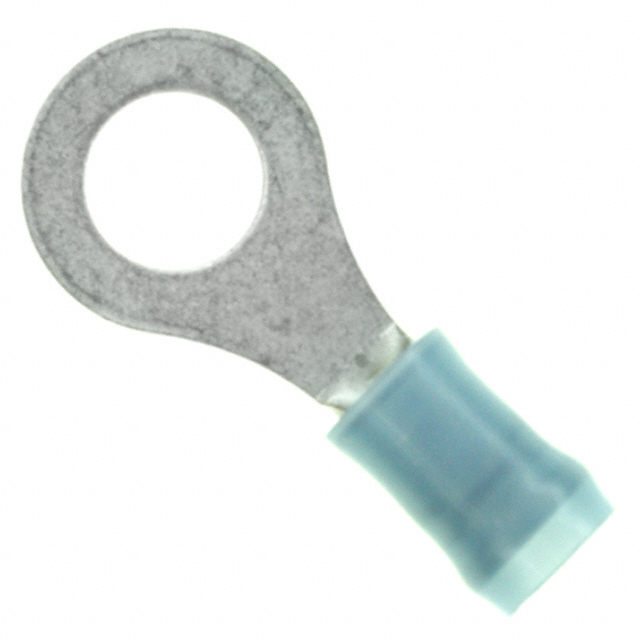

8-321045-1
Or copy the link below:
- Mfr.Part #
- 8-321045-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RING CIRC 14-16AWG #1/4
- Stock
- 115
- In Stock ：
- 115
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Ring Connectors
- Depth :
- 11.91mm
- Length :
- 27.38mm
- Terminal and Terminal Block Type :
- RING TERMINAL
- Number of Holes :
- 1
- Mounting Type :
- Free Hanging (In-Line)
- Wire Gauge :
- 14-16 AWG
- Published :
- 1998
- Gender :
- FEMALE
- Tongue Thickness :
- 790μm
- Voltage - Rated AC :
- 300V
- Wire Gauge (Max) :
- 16 AWG
- Terminal Type :
- Circular
- Feature :
- Serrated Termination
- Heavy Duty :
- No
- Stud Size :
- M6
- Insulation :
- Insulated
- HTS Code :
- 8536.90.40.00
- Thickness :
- 0.031 0.79mm
- Wire Gauge (Min) :
- 14 AWG
- Wire/Cable Diameter :
- 4.318 mm
- ECCN Code :
- EAR99
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mount :
- Free Hanging
- Series :
- PIDG
- Insulation Diameter :
- 0.115 ~ 0.170 (2.92mm ~ 4.32mm)
- Orientation :
- Straight
- Factory Lead Time :
- 10 Weeks
- Material Thickness :
- 790μm
- Contact Material :
- Copper
- Stud Diameter :
- 6.731 mm
- Length - Overall :
- 1.078 27.38mm
- Width - Outer Edges :
- 0.469 11.91mm
- Material - Insulation :
- Polyamide (PA), Nylon
- Lifecycle Status :
- ACTIVE (Last Updated: 4 months ago)
- Lead Free :
- Lead Free
- Color :
- Blue
- Stud/Tab Size :
- 1/4 Stud
- Pbfree Code :
- yes
- RoHS Status :
- RoHS Compliant
- Insulated Wire Support :
- yes
- Packaging :
- Bulk
- REACH SVHC :
- Unknown
- Contact Plating :
- Tin
- Termination :
- Crimp
- Datasheets
- 8-321045-1
8-321045-1 datasheet pdf and Terminals - Ring Connectors product details from TE Connectivity AMP Connectors stock available at Xinshop
