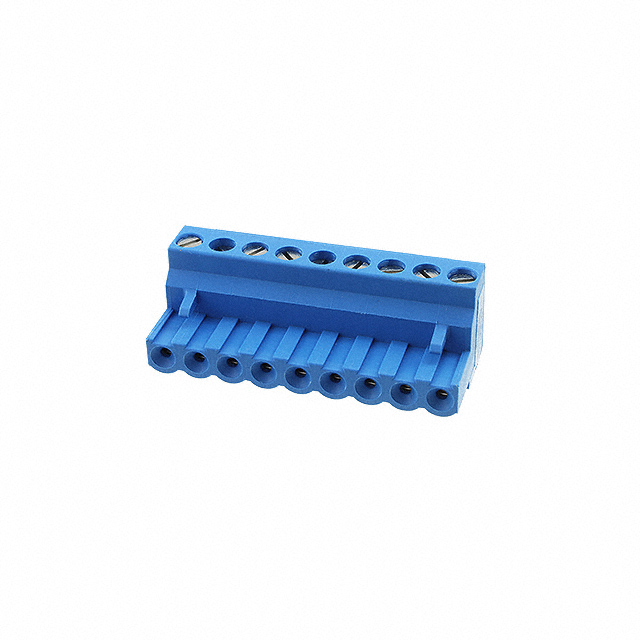

796696-9

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Plugs and Sockets

Max Current Rating :

15A

Wire Gauge (Max) :

30 AWG

Voltage :

300V

Mounting Type :

Free Hanging (In-Line)

Wire Gauge (Min) :

30 AWG

Current :

15A

Contact Material :

Phosphor Bronze

Torque - Screw :

0.79 Nm (7.0 Lb-In)

Lifecycle Status :

ACTIVE (Last Updated: 4 days ago)

Number of Decks :

1

Wire Gauge or Range - AWG :

12-30 AWG

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Termination :

Screw

Voltage - Rated :

300V

Number of Contacts :

9

Series :

Buchanan

Wire Cross Section :

2.5 mm2

Radiation Hardening :

No

Voltage - Rated AC :

300V

Pitch :

0.197 5.00mm

Connector Type :

PLUG

Mount :

Cable, Free Hanging

Operating Temperature :

-40°C~110°C

Color :

Blue

Wire Gauge or Range - mm² :

0.05-3mm2

Factory Lead Time :

13 Weeks

RoHS Status :

RoHS Compliant

Screw Size :

M3

Lead Free :

Lead Free

Termination Style :

Screw - Rising Cage Clamp

Feature :

Retention Latches (Non-Wire Side), Side Stacking

Packaging :

Bulk

Number of Rows :

1

Insulation Height :

0.610 15.49mm

Contact Mating Finish :

Tin

Current Rating :

15A

Number of Ways :

19

Housing Material :

Polyamide (PA66), Nylon 6/6

ELV :

Compliant

Number of Levels :

1

Published :

2007

Orientation :

RIGHT ANGLE

Safety Approval :

UL

Flammability Rating :

UL94 V-0

Plug Wire Entry :

180°

Material Flammability Rating :

UL94 V-0

Wire Strip Length :

6-7.5mm

Type :

Plug, Female Sockets
