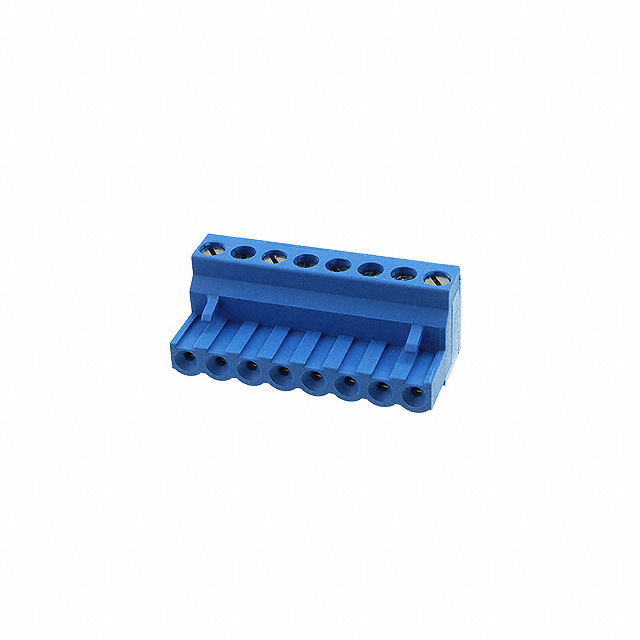

796696-8

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Plugs and Sockets

Termination :

Screw

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

RoHS Status :

RoHS Compliant

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Screw Size :

M3

Insulation Height :

0.610 15.49mm

Mounting Type :

Free Hanging (In-Line)

Operating Temperature :

-40°C~110°C

Radiation Hardening :

No

Wire Gauge or Range - AWG :

12-30 AWG

Contact Material :

Phosphor Bronze

Torque - Screw :

0.79 Nm (7.0 Lb-In)

Housing Material :

Polyamide (PA66), Nylon 6/6

Contact Mating Finish :

Tin

Wire Strip Length :

6-7.5mm

Plug Wire Entry :

180°

Current Rating :

15A

Voltage - Rated :

300V

Mount :

Free Hanging, Panel

Feature :

Retention Latches (Non-Wire Side), Side Stacking

Published :

2007

Number of Contacts :

8

Type :

Plug, Female Sockets

Wire Gauge or Range - mm² :

0.05-3mm2

Color :

Blue

Flammability Rating :

UL94 V-0

Termination Style :

Screw - Rising Cage Clamp

Orientation :

RIGHT ANGLE

Packaging :

Bulk

Wire Gauge (Max) :

30 AWG

Material Flammability Rating :

UL94 V-0

Wire Cross Section :

2.5 mm2

Factory Lead Time :

13 Weeks

Wire Gauge (Min) :

12 AWG

Pitch :

0.197 5.00mm

ELV :

Compliant

ECCN Code :

EAR99

Number of Ways :

18

Safety Approval :

UL

Number of Levels :

1

Max Current Rating :

15A

Connector Type :

PLUG

Current :

15A

Number of Rows :

1

Voltage - Rated AC :

300V

Series :

Buchanan

Number of Decks :

1

Voltage :

300V
