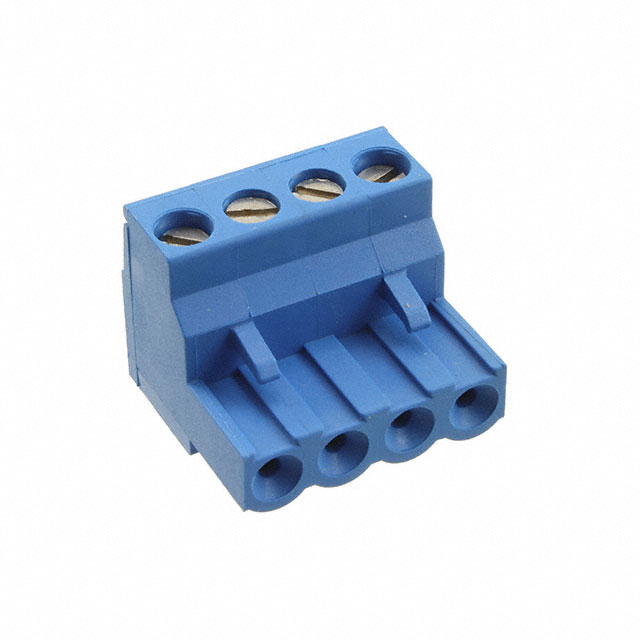

796696-4

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Plugs and Sockets

Housing Material :

Polyamide (PA66), Nylon 6/6

Current :

15A

Radiation Hardening :

No

Depth :

18.4mm

Orientation :

RIGHT ANGLE

ECCN Code :

EAR99

Wire Cross Section :

2.5 mm2

Length :

20mm

Max Current Rating :

15A

Lifecycle Status :

ACTIVE (Last Updated: 2 days ago)

Max Voltage Rating (AC) :

300V

Number of Decks :

1

Mounting Type :

Free Hanging (In-Line)

Max Supply Voltage (AC) :

300V

RoHS Status :

RoHS Compliant

Wire Gauge (Max) :

30 AWG

Number of Rows :

1

Number of Contacts :

4

Wire Gauge (Min) :

30 AWG

Factory Lead Time :

13 Weeks

Packaging :

Bulk

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Feature :

Retention Latches (Non-Wire Side), Side Stacking

Material Flammability Rating :

UL94 V-0

Voltage - Rated AC :

300V

Voltage - Rated :

300V

Connector Type :

PLUG

Contact Mating Finish :

Tin

Plug Wire Entry :

180°

Torque - Screw :

0.79 Nm (7.0 Lb-In)

Wire Gauge or Range - AWG :

12-30 AWG

Voltage :

300V

Lead Free :

Lead Free

Number of Ways :

24

Width :

18.4mm

Pitch :

0.197 5.00mm

Screw Size :

M3

Operating Temperature :

-40°C~110°C

Type :

Plug, Female Sockets

Wire Gauge or Range - mm² :

0.05-3mm2

Safety Approval :

UL

Flammability Rating :

UL94 V-0

ELV :

Compliant

Insulation Height :

0.610 15.49mm

Wire Strip Length :

6-7.5mm

Number of Levels :

1

Current Rating :

15A

Published :

2007

Series :

Buchanan

Contact Material :

Phosphor Bronze

Color :

Blue

Termination Style :

Screw - Rising Cage Clamp

Termination :

Screw

Mount :

Free Hanging, Panel
