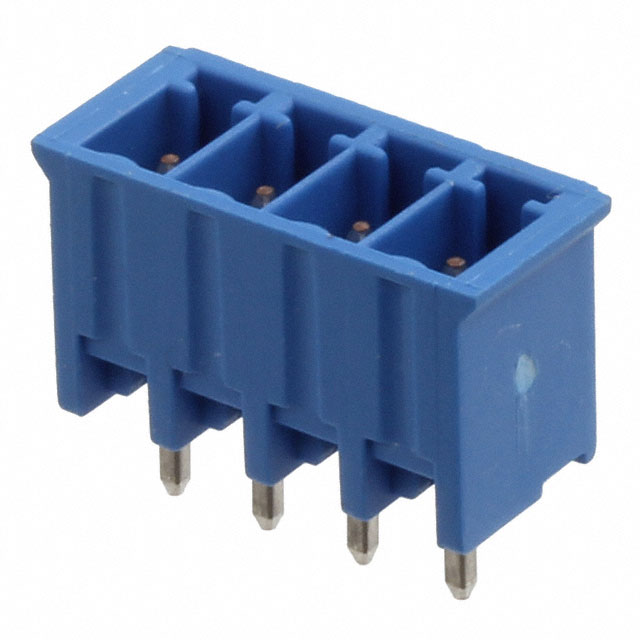

796694-4
Or copy the link below:
- Mfr.Part #
- 796694-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK HDR 4POS VERT 3.5MM
- Stock
- 22,463
- In Stock ：
- 22,463
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Plugs and Sockets
- Packaging :
- Bulk
- Series :
- Termi-Blok, Buchanan
- Number of Decks :
- 1
- Voltage - Rated AC :
- 300V
- Lead Free :
- Lead Free
- Number of Levels :
- 1
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Connector Type :
- Header
- Max Current Rating :
- 11A
- ECCN Code :
- EAR99
- Max Voltage Rating (AC) :
- 300V
- Number of Ways :
- 14
- Pitch :
- 0.138 3.50mm
- Flammability Rating :
- UL94 V-0
- Contact Mating Finish :
- Tin
- Depth :
- 7.25mm
- Width :
- 7.25mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Header Orientation :
- Vertical
- Safety Approval :
- UL
- RoHS Status :
- RoHS Compliant
- Current :
- 11A
- ELV :
- Compliant
- Operating Temperature :
- -40°C~110°C
- Voltage :
- 300V
- Additional Feature :
- POLARIZED
- Insulation Height :
- 0.362 9.20mm
- Material Flammability Rating :
- UL94 V-0
- Type :
- Header, Male Pins, Shrouded (4 Side)
- Number of Rows :
- 1
- Radiation Hardening :
- No
- Length - Tail :
- 3.4mm
- Mounting Type :
- Through Hole
- Contact Material :
- Brass
- Mount :
- Through Hole
- Color :
- Blue
- Current Rating :
- 11A
- Number of Positions Per Level :
- 4
- Length :
- 16mm
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Voltage - Rated :
- 300V
- Termination Style :
- Solder
- Published :
- 2004
- Number of Positions :
- 4
- Factory Lead Time :
- 12 Weeks
- Fastening Method :
- Connector
- Datasheets
- 796694-4
Bulk 0.138 3.50mm Blue 1 Levels Through Hole Header, Male Pins, Shrouded (4 Side) Termi-Blok, Buchanan Polyamide (PA66), Nylon 6/6 Tin Brass
796694-4 Overview
The product is packaged in Header.This device is mounted in the Through Hole position.It has been determined that a Bulk case is necessary to package the product.There is a product in the Termi-Blok, Buchanan Series.To name a few, there is also POLARIZED.Part Through Hole is mounted to the part.As a result, the device runs at -40°C~110°C Operating Temperature.With this part, you get a lot of benefits that you won't find in other Header, Male Pins, Shrouded (4 Side) products.
796694-4 Features
Termi-Blok, Buchanan series
796694-4 Applications
There are a lot of TE Connectivity AMP Connectors
796694-4 Terminal Blocks applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
