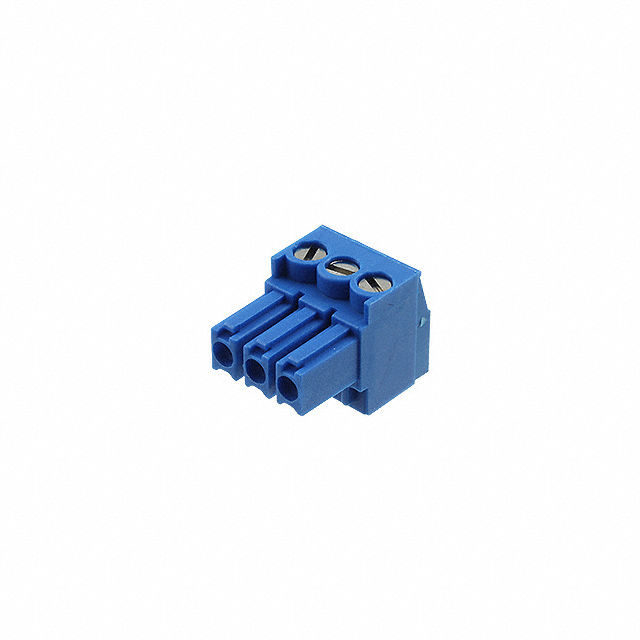

796693-3

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Plugs and Sockets

Color :

Blue

Material Flammability Rating :

UL94 V-0

Operating Temperature :

-40°C~110°C

Flammability Rating :

UL94 V-0

Voltage - Rated AC :

300V

Wire Gauge or Range - mm² :

0.3-2mm2

Termination Style :

Screw - Rising Cage Clamp

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Screw Size :

M2

Number of Positions Per Level :

3

Feature :

Side Stacking

Number of Circuits :

3

Wire Strip Length :

5-6mm

Wire Gauge (Max) :

30 AWG

Number of Contacts :

3

Lifecycle Status :

ACTIVE (Last Updated: 4 days ago)

Max Voltage Rating (AC) :

300V

RoHS Status :

RoHS Compliant

Termination :

Screw

Positions Per Level :

3

Mount :

Cable, Free Hanging

Radiation Hardening :

No

Pitch :

0.138 3.50mm

Depth :

15.5mm

Max Operating Temperature :

105°C

Published :

2007

Contact Plating :

Tin

Thread Size :

M2

Min Operating Temperature :

-40°C

Factory Lead Time :

15 Weeks

Mounting Type :

Free Hanging (In-Line)

Max Current Rating :

11A

Contact Mating Finish :

Tin

Series :

Termi-Blok, Buchanan

Voltage - Rated :

300V

Voltage - UL :

300V

Contact Material :

Phosphor Bronze

Current Rating :

11A

Length :

10.5mm

Current :

11A

Number of Levels :

1

Orientation :

RIGHT ANGLE

Number of Positions :

3

Connector Type :

PLUG

Housing Material :

Polyamide (PA66), Nylon 6/6

Wire Gauge (Min) :

22 AWG

Number of Rows :

1

Insulation Height :

0.437 11.10mm

Current - UL :

11A

Housing Color :

Blue

Wire Gauge or Range - AWG :

14-30 AWG

Torque - Screw :

0.31 Nm (2.7 Lb-In)

Packaging :

Bulk

Type :

Plug, Female Sockets

ELV :

Compliant

Plug Wire Entry :

180°

Max Supply Voltage (AC) :

300V

Voltage :

300V
