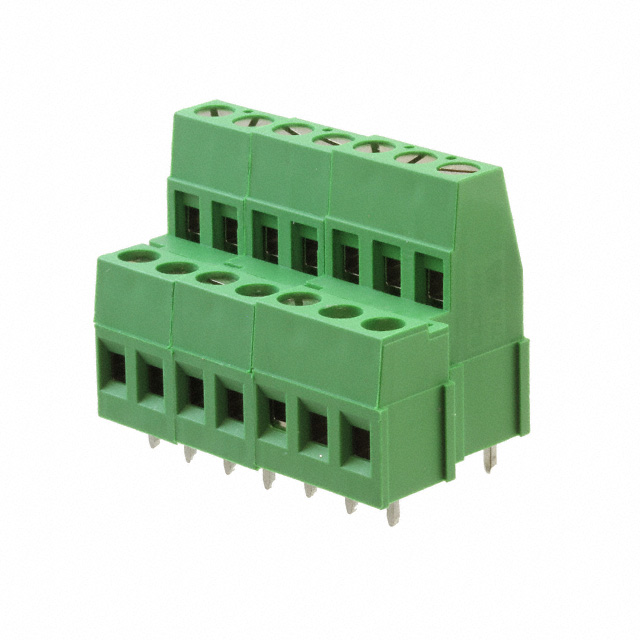

796692-7
Or copy the link below:
- Mfr.Part #
- 796692-7
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 7P SIDE ENT 5.08MM PCB
- Stock
- 234
- In Stock ：
- 234
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Wire to Board
- Screw Thread :
- M3
- Mating Orientation :
- Horizontal with Board
- Orientation :
- Straight
- Clamp Material - Plating :
- Brass - Tin Plated
- Contact Material - Plating :
- Brass - Tin Plated
- Max Current Rating :
- 17.5A
- Factory Lead Time :
- 21 Weeks
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Pitch :
- 0.200 5.08mm
- Screw Material - Plating :
- Brass - Nickel Plated
- Number of Rows :
- 2
- ECCN Code :
- EAR99
- Number of Ways :
- 14
- HTS Code :
- 8536.69.40.40
- Feature :
- Interlocking (Side)
- Connector Type :
- Receptacle
- Number of Levels :
- 2
- ELV :
- Compliant
- Color :
- Green
- Mount :
- Through Hole
- Radiation Hardening :
- No
- Plating :
- Brass, Tin
- Number of Contacts :
- 14
- Voltage - Rated :
- 300V
- Termination :
- Screw
- Contact Material :
- Brass
- Contact Plating :
- Tin
- Mounting Type :
- Through Hole
- Flammability Rating :
- UL94 V-0
- Number of Positions Per Level :
- 7
- Packaging :
- Bulk
- Published :
- 2007
- Wire Gauge (Min) :
- 30 AWG
- Torque - Screw :
- 0.79 Nm (7.0 Lb-In)
- Safety Approval :
- UL; VDE; CSA
- Number of Decks :
- 2
- Wire Gauge :
- 12-30 AWG
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- RoHS Status :
- RoHS Compliant
- Terminal and Terminal Block Type :
- MODULAR TERMINAL BLOCK
- Wire Gauge (Max) :
- 30 AWG
- Length - Tail :
- 3.81mm
- Series :
- Buchanan
- Wire Termination :
- Screw - Rising Cage Clamp
- Current Rating :
- 17.5A
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Datasheets
- 796692-7
0.200 5.08mm Green Bulk Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - Rising Cage Clamp 2 Levels 12-30 AWG Buchanan
796692-7 Overview
Currently, it is packaged in Receptacle.The mounting type of the device is Through Hole.A Bulk case is used to package the product.A product of the Buchanan Series, it belongs to the range of products of that series.A number of features make the Interlocking (Side) feature more powerful.Through Hole represents the mounting point for the part.
796692-7 Features
Buchanan series
796692-7 Applications
There are a lot of TE Connectivity AMP Connectors
796692-7 Terminal Blocks applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
