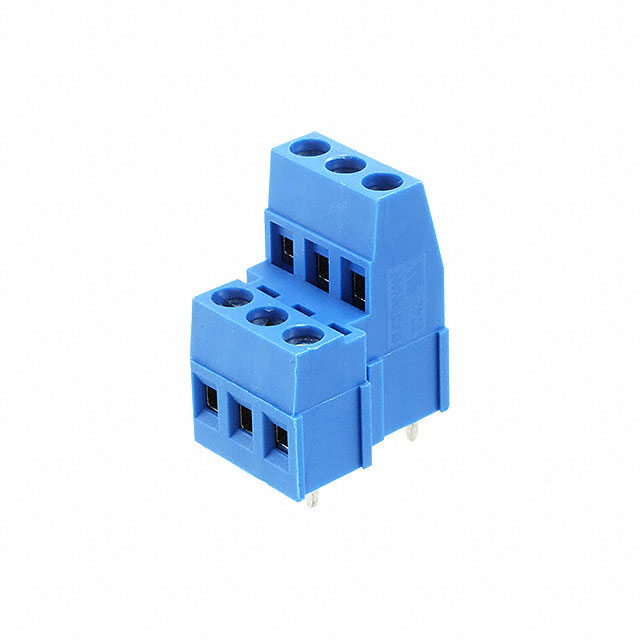

796691-3

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Wire to Board

Lifecycle Status :

ACTIVE (Last Updated: 2 days ago)

Flammability Rating :

UL94 V-0

Height :

25.2mm

Mating Orientation :

Horizontal with Board

Voltage - Rated :

300V

Termination :

Solder

Contact Plating :

Tin

Mounting Type :

Through Hole

Max Voltage Rating (AC) :

300V

Color :

Blue

Wire Gauge (Min) :

12 AWG

Wire Termination :

Screw - Rising Cage Clamp

Number of Rows :

2

Wire Gauge :

12-30 AWG

Clamp Material - Plating :

Brass - Tin Plated

Radiation Hardening :

No

Lead Free :

Lead Free

Contact Material :

Brass

Pitch :

0.197 5.00mm

Screw Thread :

M3

Number of Decks :

2

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

ELV :

Compliant

Safety Approval :

UL

Max Current Rating :

17.5A

Terminal and Terminal Block Type :

MODULAR TERMINAL BLOCK

Current Rating :

17.5A

Packaging :

Bulk

Connector Type :

Receptacle

Published :

2002

Number of Contacts :

6

Feature :

Interlocking (Side)

ECCN Code :

EAR99

Length :

17.5mm

Series :

Buchanan

Contact Material - Plating :

Brass - Tin Plated

Orientation :

Straight

Torque - Screw :

0.79 Nm (7.0 Lb-In)

Factory Lead Time :

13 Weeks

Width :

21.5mm

Mount :

Through Hole

Number of Levels :

2

Min Operating Temperature :

-40°C

Length - Tail :

3.81mm

Wire Gauge (Max) :

30 AWG

Screw Material - Plating :

Brass - Nickel Plated

Number of Ways :

6

Plating :

Brass, Tin

Max Operating Temperature :

105°C

Housing Material :

Polyamide (PA66), Nylon 6/6

RoHS Status :

RoHS Compliant

Number of Positions Per Level :

3
