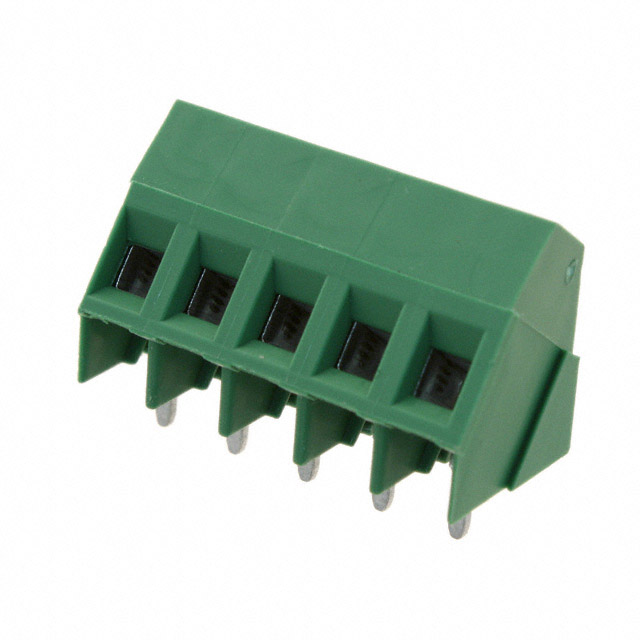

796690-5
Or copy the link below:
- Mfr.Part #
- 796690-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK 5POS 35DEG 5MM PCB
- Stock
- 968
- In Stock ：
- 968
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Wire to Board
- Pitch :
- 0.197 5.00mm
- Radiation Hardening :
- No
- Feature :
- Interlocking (Side)
- Current Rating :
- 17.5A
- Number of Contacts :
- 5
- Terminal and Terminal Block Type :
- MODULAR TERMINAL BLOCK
- ELV :
- Compliant
- Max Operating Temperature :
- 105°C
- ECCN Code :
- EAR99
- Safety Approval :
- UL
- Series :
- Buchanan
- Contact Plating :
- Tin
- Max Voltage Rating (AC) :
- 300V
- Plating :
- Brass, Tin
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Max Current Rating :
- 17.5A
- Number of Levels :
- 1
- RoHS Status :
- RoHS Compliant
- Mount :
- Through Hole
- Flammability Rating :
- UL94 V-0
- Mounting Type :
- Through Hole
- Factory Lead Time :
- 19 Weeks
- Number of Ways :
- 5
- Screw Thread :
- M3
- Number of Decks :
- 1
- Wire Gauge (Min) :
- 12 AWG
- Min Operating Temperature :
- -40°C
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Clamp Material - Plating :
- Brass - Tin Plated
- Wire Termination :
- Screw - Rising Cage Clamp
- Color :
- Green
- Contact Material :
- Brass
- Connector Type :
- Receptacle
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Voltage - Rated :
- 300V
- Number of Rows :
- 1
- Screw Material - Plating :
- Brass - Nickel Plated
- Contact Material - Plating :
- Brass - Tin Plated
- Published :
- 2007
- Mating Orientation :
- 35° (145°) Angle with Board
- Length - Tail :
- 3.81mm
- Additional Feature :
- PA66, 94V-0
- Packaging :
- Bulk
- Torque - Screw :
- 0.79 Nm (7.0 Lb-In)
- Wire Gauge (Max) :
- 30 AWG
- Termination :
- Solder
- Wire Gauge :
- 12-30 AWG
- Datasheets
- 796690-5
0.197 5.00mm Green Bulk Polyamide (PA66), Nylon 6/6 Through Hole 35° (145°) Angle with Board Screw - Rising Cage Clamp 1 Levels 12-30 AWG Buchanan
796690-5 Overview
Packaging is Receptacle.Through Hole is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the Buchanan Series, it can be found in this category.There are also other features such as PA66, 94V-0, to name only a few.Temperatures below 105°C are best for using it.There's a minimum temperature of -40°C for this device.With its Interlocking (Side) feature, it is more powerful in many ways.In this case, Through Hole mounts the part.
796690-5 Features
Buchanan series
796690-5 Applications
There are a lot of TE Connectivity AMP Connectors
796690-5 Terminal Blocks applications.
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
