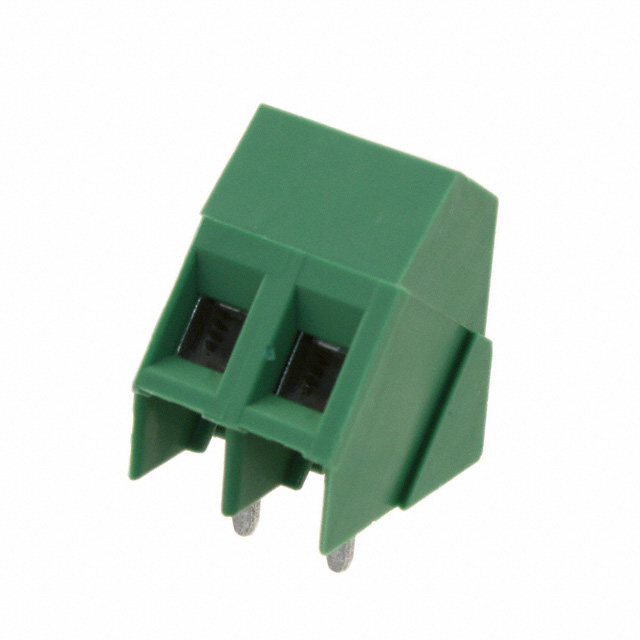

796690-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Wire to Board

RoHS Status :

RoHS Compliant

Number of Decks :

1

Max Current Rating :

17.5A

Feature :

Interlocking (Side)

Depth :

12.5mm

Plating :

Brass, Tin

Housing Material :

Polyamide (PA66), Nylon 6/6

Wire Termination :

Screw - Rising Cage Clamp

Max Operating Temperature :

105°C

Published :

2007

Wire Gauge (Min) :

30 AWG

Gender :

FEMALE

Wire Gauge (Max) :

30 AWG

Mating Orientation :

35° (145°) Angle with Board

Min Operating Temperature :

-40°C

Wire Gauge :

12-30 AWG

ELV :

Compliant

Terminal and Terminal Block Type :

MODULAR TERMINAL BLOCK

Number of Contacts :

2

Lead Free :

Lead Free

Packaging :

Bulk

Mounting Type :

Through Hole

Max Supply Voltage (AC) :

300V

HTS Code :

8536.69.40.40

Clamp Material - Plating :

Brass - Tin Plated

Contact Material :

Brass

Contact Plating :

Tin

Number of Rows :

1

Mount :

Through Hole

Screw Thread :

M3

ECCN Code :

EAR99

Termination :

Solder

Pitch :

0.197 5.00mm

Current Rating :

17.5A

Number of Ways :

2

Length - Tail :

3.81mm

Voltage - Rated :

300V

Contact Material - Plating :

Brass - Tin Plated

Color :

Green

Safety Approval :

UL

Radiation Hardening :

No

Factory Lead Time :

12 Weeks

Wire/Cable Gauge :

30 AWG

Length :

10.5mm

Torque - Screw :

0.79 Nm (7.0 Lb-In)

Screw Material - Plating :

Brass - Nickel Plated

REACH SVHC :

Unknown

Orientation :

Straight

Series :

Buchanan

Flammability Rating :

UL94 V-0

Number of Levels :

1

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Material :

Nylon

Additional Feature :

PA66, 94V-0

Max Voltage Rating (AC) :

300V

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Connector Type :

Receptacle
