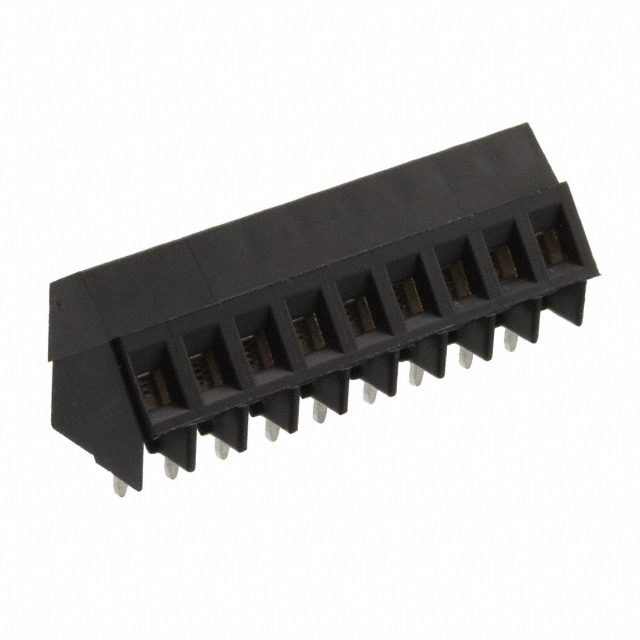

796689-9
Or copy the link below:
- Mfr.Part #
- 796689-9
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK 9POS 35DEG 5MM PCB
- Stock
- 385
- In Stock ：
- 385
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Wire to Board
- Factory Lead Time :
- 12 Weeks
- Number of Levels :
- 1
- Contact Material - Plating :
- Brass - Tin Plated
- Mounting Type :
- Through Hole
- Feature :
- Interlocking (Side)
- Contact Material :
- Brass
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Color :
- Black
- Number of Contacts :
- 9
- Radiation Hardening :
- No
- Wire Gauge :
- 12-30 AWG
- Wire Gauge (Max) :
- 30 AWG
- Length - Tail :
- 3.81mm
- Plating :
- Brass, Tin
- Current Rating :
- 17.5A
- RoHS Status :
- RoHS Compliant
- Torque - Screw :
- 0.79 Nm (7.0 Lb-In)
- Voltage - Rated :
- 300V
- Published :
- 2007
- Screw Thread :
- M3
- Max Current Rating :
- 17.5A
- Mating Orientation :
- 35° (145°) Angle with Board
- Flammability Rating :
- UL94 V-0
- Pitch :
- 0.197 5.00mm
- Screw Material - Plating :
- Brass - Nickel Plated
- Mount :
- Through Hole
- Number of Decks :
- 1
- Series :
- Buchanan
- Contact Plating :
- Tin
- Termination :
- Screw
- Safety Approval :
- UL
- Terminal and Terminal Block Type :
- MODULAR TERMINAL BLOCK
- Clamp Material - Plating :
- Brass - Tin Plated
- Connector Type :
- Receptacle
- Lifecycle Status :
- ACTIVE (Last Updated: 4 months ago)
- Wire Termination :
- Screw - Rising Cage Clamp
- Number of Ways :
- 9
- Wire Gauge (Min) :
- 30 AWG
- Number of Rows :
- 1
- ELV :
- Compliant
- Packaging :
- Bulk
- Wire Cross Section :
- 2.5 mm2
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Datasheets
- 796689-9
0.197 5.00mm Black Bulk Polyamide (PA66), Nylon 6/6 Through Hole 35° (145°) Angle with Board Screw - Rising Cage Clamp 1 Levels 12-30 AWG Buchanan
796689-9 Overview
This product is packaged in a Receptacle box.Through Hole indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the Buchanan Series.In many ways, Interlocking (Side) makes it more powerful.By Through Hole, the part is mounted.
796689-9 Features
Buchanan series
796689-9 Applications
There are a lot of TE Connectivity AMP Connectors
796689-9 Terminal Blocks applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
