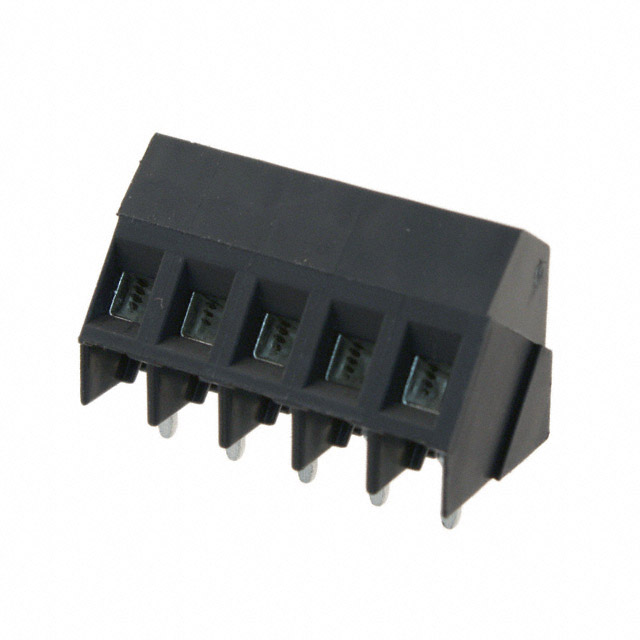

796689-5
Or copy the link below:
- Mfr.Part #
- 796689-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK 5POS 35DEG 5MM PCB
- Stock
- 942
- In Stock ：
- 942
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Wire to Board
- Feature :
- Interlocking (Side)
- Number of Contacts :
- 5
- Length :
- 25mm
- Voltage - Rated :
- 300V
- Wire Gauge (Min) :
- 30 AWG
- Wire Termination :
- Screw - Rising Cage Clamp
- Number of Levels :
- 1
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Safety Approval :
- UL
- Contact Plating :
- Tin
- Screw Material - Plating :
- Brass - Nickel Plated
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Torque - Screw :
- 0.79 Nm (7.0 Lb-In)
- Series :
- Buchanan
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Termination :
- Solder
- Packaging :
- Bulk
- Max Voltage Rating (AC) :
- 300V
- Orientation :
- Straight
- Contact Material :
- Brass
- Lead Free :
- Lead Free
- Length - Tail :
- 3.81mm
- Color :
- Black
- Number of Rows :
- 1
- Plating :
- Brass, Tin
- Depth :
- 12.5mm
- ECCN Code :
- EAR99
- Wire Gauge (Max) :
- 30 AWG
- RoHS Status :
- RoHS Compliant
- Pitch :
- 0.197 5.00mm
- ELV :
- Compliant
- Number of Ways :
- 5
- Wire Gauge :
- 12-30 AWG
- Max Current Rating :
- 17.5A
- Number of Decks :
- 1
- Min Operating Temperature :
- -40°C
- Published :
- 2007
- Screw Thread :
- M3
- Current Rating :
- 17.5A
- Radiation Hardening :
- No
- Terminal and Terminal Block Type :
- MODULAR TERMINAL BLOCK
- Flammability Rating :
- UL94 V-0
- Factory Lead Time :
- 12 Weeks
- Clamp Material - Plating :
- Brass - Tin Plated
- Mounting Type :
- Through Hole
- Mount :
- Through Hole
- Mating Orientation :
- 35° (145°) Angle with Board
- Connector Type :
- Receptacle
- Max Supply Voltage (AC) :
- 300V
- Max Operating Temperature :
- 105°C
- Contact Material - Plating :
- Brass - Tin Plated
- Datasheets
- 796689-5
0.197 5.00mm Black Bulk Polyamide (PA66), Nylon 6/6 Through Hole 35° (145°) Angle with Board Screw - Rising Cage Clamp 1 Levels 12-30 AWG Buchanan
796689-5 Overview
You get it in Receptacle packaging.Mounting type Through Hole is selected for the device.Packaged in a Bulk case.A member of the Buchanan Series.Using it at a temperature below 105°C is ideal.A minimum temperature of -40°C is needed for this device.This feature renders it more powerful in a number of ways because of its Interlocking (Side) feature.There's a Through Hole mount on the part.
796689-5 Features
Buchanan series
796689-5 Applications
There are a lot of TE Connectivity AMP Connectors
796689-5 Terminal Blocks applications.
