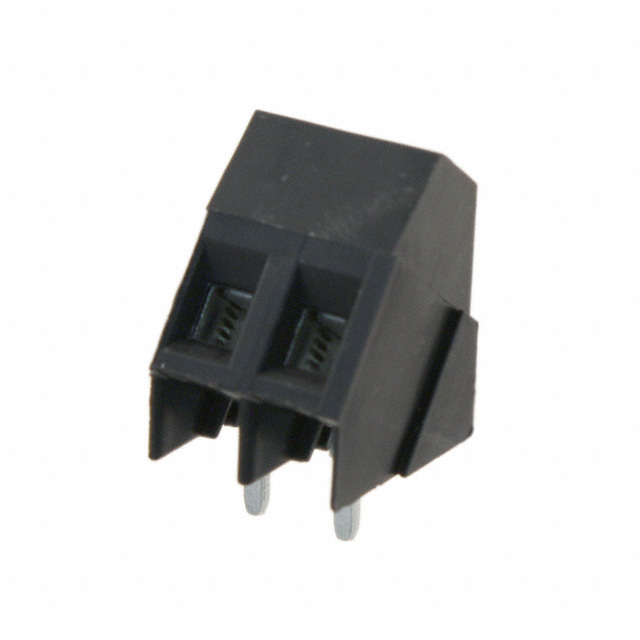

796689-2
Or copy the link below:
- Mfr.Part #
- 796689-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK 2POS 35DEG 5MM PCB
- Stock
- 6,652
- In Stock ：
- 6,652
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Wire to Board
- Length - Tail :
- 3.81mm
- Packaging :
- Bulk
- Max Operating Temperature :
- 105°C
- Housing Color :
- Black
- Min Operating Temperature :
- -40°C
- Number of Positions Per Level :
- 2
- Flammability Rating :
- UL94 V-0
- Positions Per Level :
- 2
- Screw Thread :
- M3
- Current :
- 17.5A
- Published :
- 2007
- Max Voltage Rating (AC) :
- 300V
- RoHS Status :
- RoHS Compliant
- Termination :
- Solder
- Radiation Hardening :
- No
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Thread Size :
- M3
- Mount :
- Through Hole
- Wire Gauge (Min) :
- 30 AWG
- Series :
- Buchanan
- Pitch :
- 0.197 5.00mm
- Connector Type :
- Receptacle
- Number of Circuits :
- 2
- ELV :
- Compliant
- Mounting Type :
- Through Hole
- Plating :
- Brass, Tin
- Mating Orientation :
- 35° (145°) Angle with Board
- Lead Free :
- Lead Free
- Number of Contacts :
- 2
- Clamp Material - Plating :
- Brass - Tin Plated
- Contact Material :
- Brass
- Wire Gauge :
- 12-30 AWG
- Color :
- Black
- Current Rating :
- 17.5A
- Contact Plating :
- Tin
- Voltage :
- 300V
- Voltage - Rated :
- 300V
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Number of Rows :
- 1
- Torque - Screw :
- 0.79 Nm (7.0 Lb-In)
- Contact Material - Plating :
- Brass - Tin Plated
- Number of Levels :
- 1
- Screw Material - Plating :
- Brass - Nickel Plated
- Factory Lead Time :
- 12 Weeks
- Wire Gauge (Max) :
- 30 AWG
- Max Current Rating :
- 17.5A
- Wire Termination :
- Screw - Rising Cage Clamp
- Feature :
- Interlocking (Side)
- Number of Positions :
- 2
- Datasheets
- 796689-2
0.197 5.00mm Black Bulk Polyamide (PA66), Nylon 6/6 Through Hole 35° (145°) Angle with Board Screw - Rising Cage Clamp 1 Levels 12-30 AWG Buchanan
796689-2 Overview
The packaging contains Receptacle.There is a Through Hole mounting type for the device.This product is packaged in a case marked Bulk.Product number Buchanan belongs to the Buchanan Series.Whenever the temperature is below 105°C, it's best.There is a minimum temperature requirement of [0°C] for this device.In many ways, it is more powerful due to its Interlocking (Side) feature.There is a Through Hole mount on the part.Circuits number 2 comprise the part.
796689-2 Features
Buchanan series
796689-2 Applications
There are a lot of TE Connectivity AMP Connectors
796689-2 Terminal Blocks applications.
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
