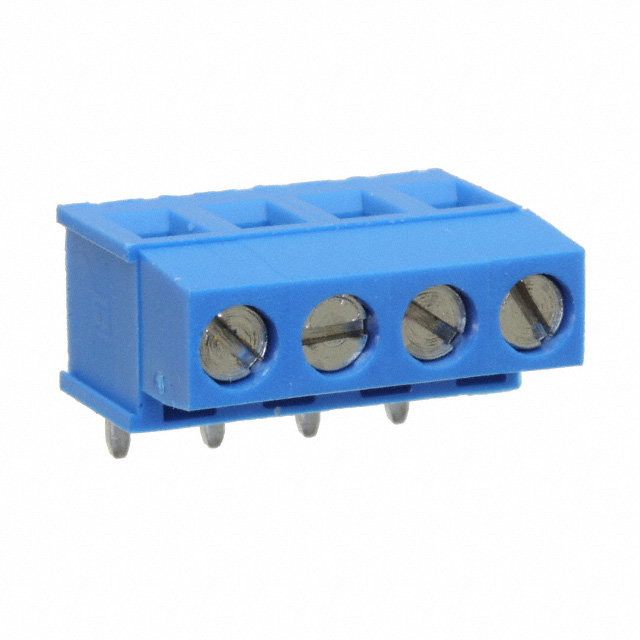

796684-4
Or copy the link below:
- Mfr.Part #
- 796684-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 4POS TOP ENTRY 5MM PCB
- Stock
- 480
- In Stock ：
- 480
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Wire to Board
- Wire Cross Section :
- 2.5 mm2
- RoHS Status :
- RoHS Compliant
- Factory Lead Time :
- 20 Weeks
- Torque - Screw :
- 0.79 Nm (7.0 Lb-In)
- Series :
- Buchanan
- Wire Gauge (Min) :
- 12 AWG
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Levels :
- 1
- Contact Material :
- Brass
- Contact Plating :
- Tin
- Mount :
- Through Hole
- Pitch :
- 0.197 5.00mm
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Max Current Rating :
- 17.5A
- Orientation :
- RIGHT ANGLE
- ECCN Code :
- EAR99
- ELV :
- Compliant
- Feature :
- Interlocking (Side)
- Connector Type :
- Receptacle
- Screw Material - Plating :
- Brass - Nickel Plated
- Voltage - Rated :
- 300V
- Number of Ways :
- 14
- Mating Orientation :
- Vertical with Board
- Contact Material - Plating :
- Brass - Tin Plated
- Wire Gauge (Max) :
- 30 AWG
- Safety Approval :
- UL
- Packaging :
- Bulk
- Terminal and Terminal Block Type :
- STRIP TERMINAL BLOCK
- Published :
- 2001
- Length - Tail :
- 3.6mm
- Flammability Rating :
- UL94 V-0
- Number of Positions Per Level :
- 4
- Termination :
- Screw
- Number of Decks :
- 1
- Wire Termination :
- Screw - Rising Cage Clamp
- Wire Gauge :
- 12-30 AWG
- Clamp Material - Plating :
- Brass - Nickel Plated
- Radiation Hardening :
- No
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Number of Rows :
- 1
- Color :
- Blue
- Mounting Type :
- Through Hole
- Screw Thread :
- M3
- Datasheets
- 796684-4
0.197 5.00mm Blue Bulk Polyamide (PA66), Nylon 6/6 Through Hole Vertical with Board Screw - Rising Cage Clamp 1 Levels 12-30 AWG Buchanan
796684-4 Overview
Packaging is Receptacle.Through Hole is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the Buchanan Series, it can be found in this category.With its Interlocking (Side) feature, it is more powerful in many ways.In this case, Through Hole mounts the part.
796684-4 Features
Buchanan series
796684-4 Applications
There are a lot of TE Connectivity AMP Connectors
796684-4 Terminal Blocks applications.
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
