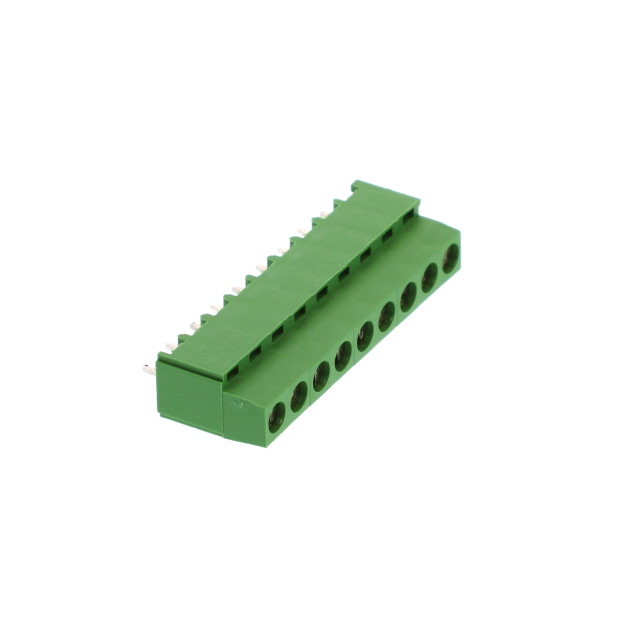

796683-9
Or copy the link below:
- Mfr.Part #
- 796683-9
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 9POS SIDE ENTRY 5MM PCB
- Stock
- 400
- In Stock ：
- 400
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Wire to Board
- ELV :
- Compliant
- Length - Tail :
- 3.5mm
- Wire Cross Section :
- 2.5 mm2
- Max Supply Voltage (AC) :
- 300V
- Feature :
- Interlocking (Side)
- Connector Type :
- Receptacle
- Screw Material - Plating :
- Brass - Nickel Plated
- Contact Plating :
- Tin
- Flammability Rating :
- UL94 V-0
- Termination :
- Solder
- Clamp Material - Plating :
- Brass - Nickel Plated
- Orientation :
- Straight
- Published :
- 2007
- Factory Lead Time :
- 12 Weeks
- Pitch :
- 0.197 5.00mm
- Mating Orientation :
- Horizontal with Board
- Wire Gauge :
- 12-30 AWG
- Safety Approval :
- UL
- Torque - Screw :
- 0.79 Nm (7.0 Lb-In)
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Voltage - Rated :
- 300V
- Radiation Hardening :
- No
- Contact Material - Plating :
- Brass - Tin Plated
- Packaging :
- Bulk
- Number of Positions Per Level :
- 9
- Lifecycle Status :
- ACTIVE (Last Updated: 4 months ago)
- Number of Levels :
- 1
- Color :
- Green
- Wire Termination :
- Screw - Rising Cage Clamp
- Number of Decks :
- 1
- Screw Thread :
- M3
- Mounting Type :
- Through Hole
- Wire Gauge (Min) :
- 30 AWG
- Number of Rows :
- 1
- Max Current Rating :
- 17.5A
- Series :
- Buchanan
- Mount :
- Through Hole
- Number of Ways :
- 19
- Contact Material :
- Brass
- Current Rating :
- 17.5A
- Length :
- 45.5mm
- Terminal and Terminal Block Type :
- MODULAR TERMINAL BLOCK
- RoHS Status :
- RoHS Compliant
- Wire Gauge (Max) :
- 30 AWG
- Depth :
- 9mm
- Datasheets
- 796683-9
0.197 5.00mm Green Bulk Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 12-30 AWG Buchanan
796683-9 Overview
The packaging contains Receptacle.There is a Through Hole mounting type for the device.This product is packaged in a case marked Bulk.Product number Buchanan belongs to the Buchanan Series.In many ways, it is more powerful due to its Interlocking (Side) feature.There is a Through Hole mount on the part.
796683-9 Features
Buchanan series
796683-9 Applications
There are a lot of TE Connectivity AMP Connectors
796683-9 Terminal Blocks applications.
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
