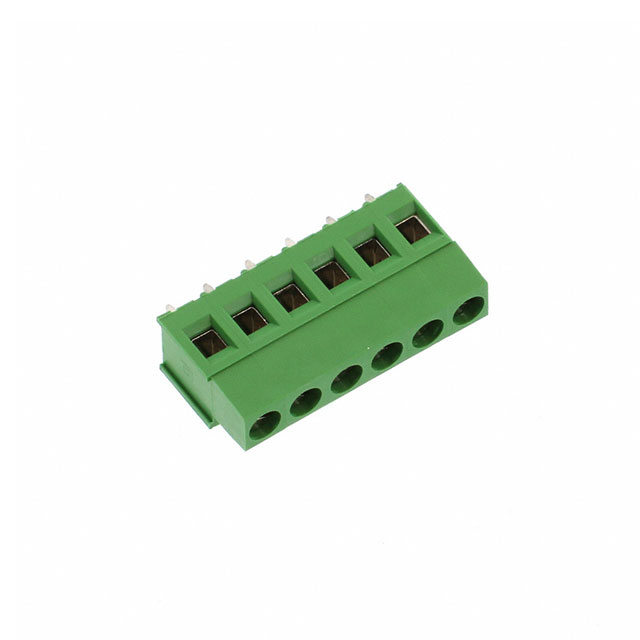

796683-6

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Wire to Board

Depth :

9mm

Packaging :

Bulk

Screw Material - Plating :

Brass - Nickel Plated

Number of Levels :

1

Number of Rows :

1

Color :

Green

Feature :

Interlocking (Side)

Max Voltage Rating (AC) :

300V

Voltage - Rated :

300V

Number of Contacts :

6

Current Rating :

17.5A

Wire Gauge (Min) :

12 AWG

Series :

Buchanan

Torque - Screw :

0.79 Nm (7.0 Lb-In)

Contact Plating :

Tin

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Max Current Rating :

17.5A

Published :

2007

Pitch :

0.197 5.00mm

Wire Cross Section :

2.5 mm2

Connector Type :

Receptacle

Wire Gauge :

12-30 AWG

Wire Gauge (Max) :

30 AWG

Number of Decks :

1

Wire Termination :

Screw - Rising Cage Clamp

Length :

30mm

Contact Material :

Brass

Flammability Rating :

UL94 V-0

Terminal and Terminal Block Type :

MODULAR TERMINAL BLOCK

Clamp Material - Plating :

Brass - Nickel Plated

Safety Approval :

UL

ECCN Code :

EAR99

Mounting Type :

Through Hole

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Max Operating Temperature :

105°C

Mating Orientation :

Horizontal with Board

Orientation :

Straight

Screw Thread :

M3

Radiation Hardening :

No

Mount :

Through Hole

Lead Free :

Lead Free

Number of Ways :

16

Length - Tail :

3.5mm

Housing Material :

Polyamide (PA66), Nylon 6/6

Factory Lead Time :

12 Weeks

Min Operating Temperature :

-40°C

Contact Material - Plating :

Brass - Tin Plated

Termination :

Solder

RoHS Status :

RoHS Compliant

Max Supply Voltage (AC) :

300V
